Product Information

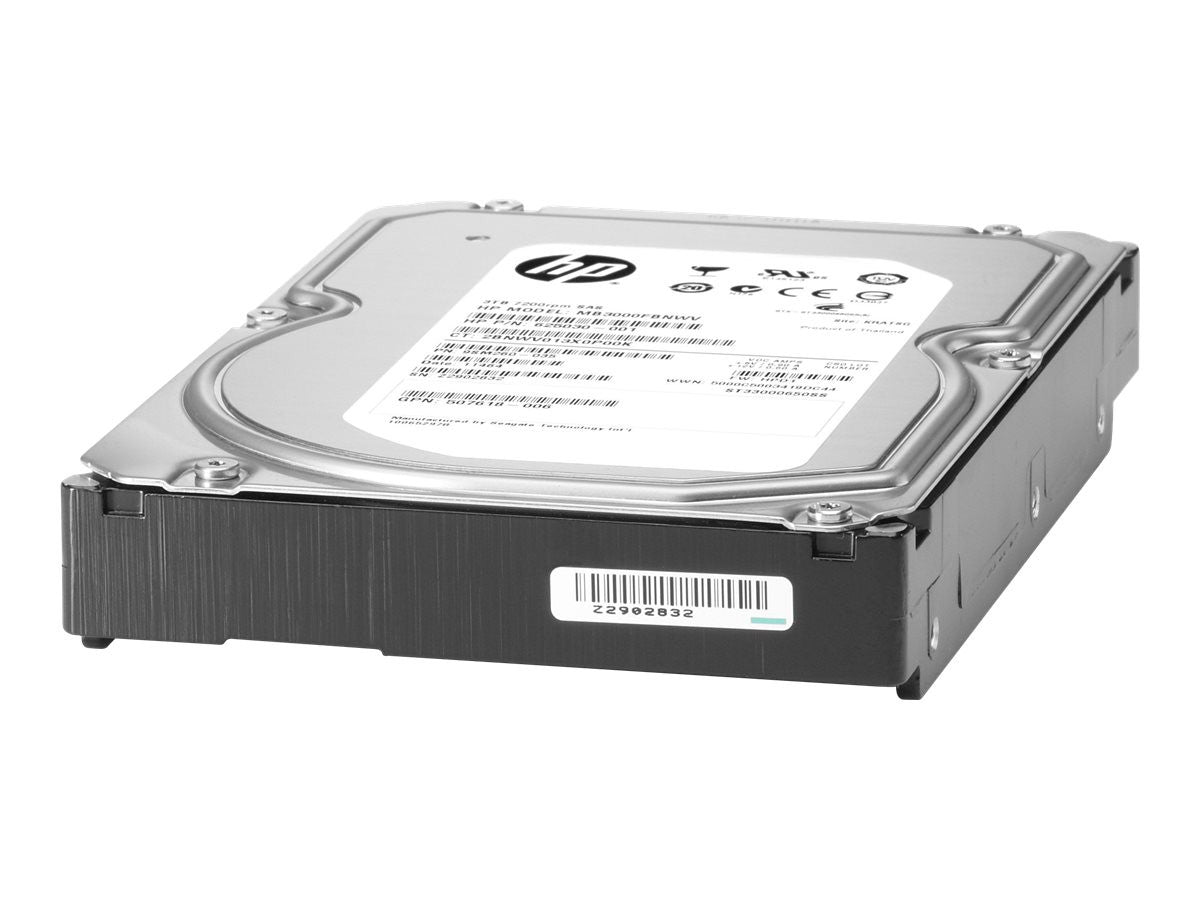

The HPE 872295-003 is a 1TB midline hard drive that spins at 7,200 RPM. It uses the 3.5 inch large form factor (LFF) with a 6Gb SATA interface. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 1TB capacity at 7.2K RPM
- SATA 6Gb/s interface
- 3.5 inch LFF
- Midline class
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 872295-003
Option Part Number: 801882-B21
Spare Part Number: 659569-001
Model Number: MB001000GWJAN
Assembly Number: 872295-003
HPE GPN: 657753-002
General
Device Type: Hard Drive - Internal
Capacity: 1 TB
Form Factor: 3.5 inch LFF
Interface Type: SATA 6Gbps
Logical Blocks: 1953525168
Drive Technology (Fill): Air
Format Type: 512n
Carrier Type: Non Hot Plug Carrier Raw (RW)
Workload Type: Business Critical (Midline)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
Drive Transfer Rate (Maximum): 6 Gb/sec
Drive Rotational Speed: 7200 RPM
Single Track Seek Time: 0.80 ms
Average Seek Time: 8.50 ms
Full-Stroke Seek Time: 16.50 ms
OD Media Rate, Max Sequential Throughput (MiB/s): 160
128Kib Random Rd (IOPs): 95
128Kib Random 70% RD/ 30% WT (IOPs): 95
128Kib Random 50% RD/ 50% WT (IOPs): 95
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 3.5" LFF Power Consumption Idle Time: 8.80 Watt
Random Read: 12.100 Watt
Random Write: 12.10 Watt
Sequential Read: 10.80 Watt
Sequential Write: 10.50 Watt
Product Dimensions
Height: 1.03 inch (2.61 cm)
Width: 4.16 inch (10.16 cm)
Depth: 5.75 inch (14.60 cm)
Weight: 3.00 lbs (1.36 kg)
Compatible Systems
- HPE ProLiant DL Series: DL180 Gen9 (3.5inch), DL180 Gen9 Base (3.5inch), DL180 Gen9 Entry (3.5inch), DL180 Gen9 Storage (3.5inch), DL20 Gen10 (3.5inch), DL20 Gen10 Entry (3.5inch), DL20 Gen10 Performance (3.5inch), DL20 Gen10 solution (3.5inch), DL20 Gen9 (3.5inch), DL20 Gen9 Entry (3.5inch), DL20 Gen9 Performance (3.5inch), DL20 Gen9 Solution (3.5inch), DL60 Gen9 (3.5inch), DL60 Gen9 Base (3.5inch), DL60 Gen9 Entry (3.5inch), DL80 Gen9 (3.5inch), DL80 Gen9 Entry (3.5inch)
- HPE MicroServer: MicroServer Gen10 (3.5inch), MicroServer Gen10 Entry (3.5inch LFF), MicroServer Gen10 Performance (3.5inch LFF), MicroServer Gen10 Plus Entry (3.5inch), MicroServer Gen10 Plus Performance (3.5inch), MicroServer Gen10 Plus SMB (3.5inch), MicroServer Gen10 Solution (3.5inch), MicroServer Gen10 Stockage Collaboration (3.5inch), MicroServer Gen8 Performance (3.5inch LFF)
- HPE ProLiant ML Series: ML10 Gen9 (3.5inch), ML10 Gen9 Entry (3.5inch), ML10 Gen9 Performance (3.5inch), ML110 Gen10 (3.5inch), ML110 Gen10 Entry (3.5inch), ML110 Gen10 Performance (3.5inch), ML110 Gen10 Solution (3.5inch), ML110 Gen9 (3.5inch), ML110 Gen9 Base (3.5inch), ML110 Gen9 Entry (3.5inch), ML30 Gen9 Entry (3.5inch), ML30 Gen9 Solution (3.5inch), ML350 Gen10 (3.5inch), ML350 Gen10 Base (3.5inch), ML350 Gen10 Entry (3.5inch), ML350 Gen10 High Performance (3.5inch), ML350 Gen10 Performance (3.5inch), ML350 Gen10 SMB (3.5inch), ML350 Gen10 Solution (3.5inch), ML350 Gen10 Special Server (3.5inch), ML350 Gen10 Sub-Entry (3.5inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
