Product Information

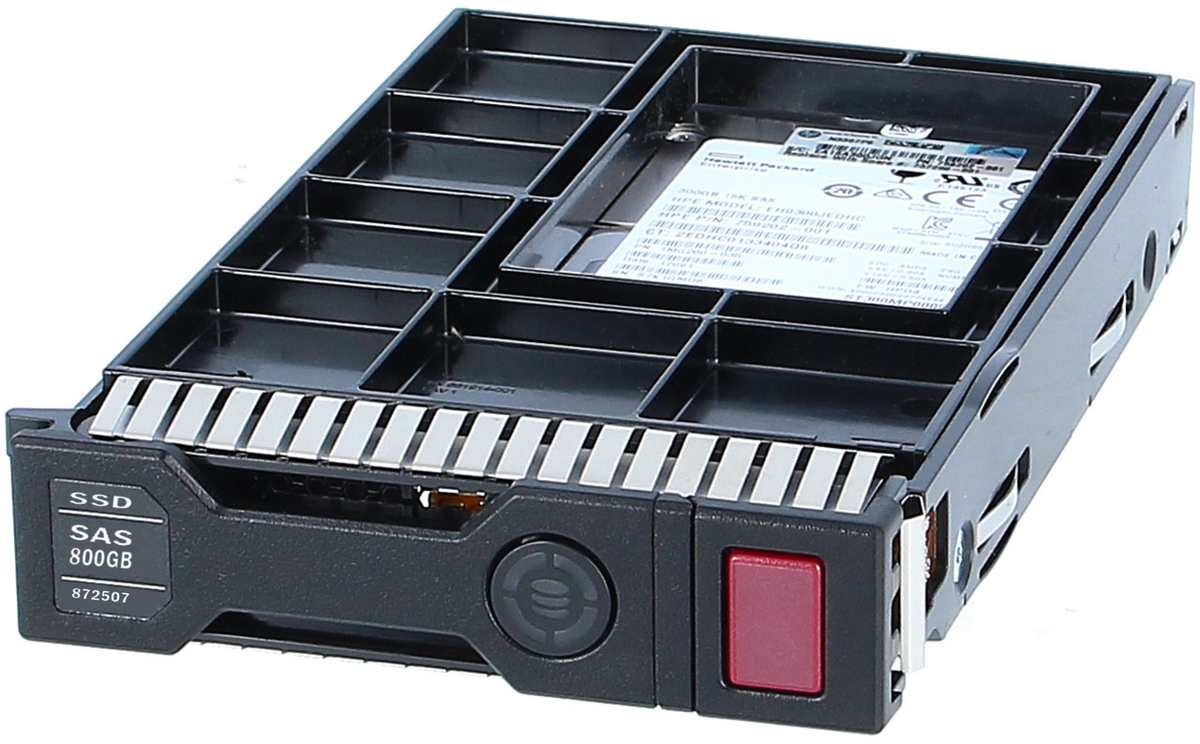

The HPE 872378-X21 is an 800GB mixed use solid state drive in the 3.5 inch large form factor (LFF) with a 12Gb SAS interface. The drive runs HPE digitally signed firmware. It comes in an HPE Smart Carrier Converter (SCC) for 3.5 inch bays. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 800GB capacity
- SAS 12Gb/s interface
- 3.5 inch LFF
- Mixed Use workload
- Digitally signed firmware
- HPE Smart Carrier Converter (SCC)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: 872378-X21
Option Part Number: 872378-X21
Spare Part Number: 872507-001
Model Number: MO000800JWFWP
Assembly Number: 872373-002
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 800 GB
NAND Flash Memory
Type: Multi-level cell (MLC)
Form Factor: 3.5inch LFF
Interface: SAS 12Gbps
Features: Digitally Signed Firmware
Carrier Type: Smart Carrier Converter
Workload Type: Mixed Use
Bundled With: HPE Smart Carrier Converter
Performance
Drive Writes Per Day (DWPD): 3
Drive Transfer Rate: 1.2 GB/sec (external)
Internal Data Rate(read) MBps: 1075
Internal Data Rate(write) MBps: 1025
4KB Random Read IOPS: 120000
4KB Random Write IOPS: 90000
Expansion & Connectivity
Interfaces: 1 x SAS 12Gb/s
Compatible Bay: 3.5" LFF
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen9 (2.5inch), DL120 Gen9 Entry (2.5inch), DL160 Gen9 (2.5inch), DL160 Gen9 Base (2.5inch), DL160 Gen9 Entry (2.5inch), DL160 Gen9 Performance (2.5inch), DL360 Gen10 (3.5inch), DL360 Gen10 Base (3.5inch), DL360 Gen10 Entry (3.5inch), DL360 Gen10 High Performance (3.5inch), DL360 Gen10 Low (3.5inch), DL360 Gen10 Performance (3.5inch), DL360 Gen10 Solution (3.5inch), DL380 Gen9 (2.5inch), DL380 Gen9 Base (2.5inch), DL380 Gen9 Entry (2.5inch), DL380 Gen9 High Performance (2.5inch), DL380 Gen9 Performance (2.5inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5inch), DL380 Gen9 Special (2.5inch), DL385 Gen10 (3.5inch), DL385 Gen10 Base (3.5inch), DL385 Gen10 Entry (3.5inch), DL385 Gen10 High-Performance (3.5inch), DL385 Gen10 Performance (3.5inch), DL385 Gen10 Solution (3.5inch), DL560 Gen9 (2.5inch), DL560 Gen9 Base (2.5inch), DL560 Gen9 Entry (2.5inch), DL560 Gen9 Performance (2.5inch)
- HPE ProLiant ML Series: ML350 Gen9 (2.5inch), ML350 Gen9 Base (2.5inch), ML350 Gen9 Entry (2.5inch), ML350 Gen9 Performance (2.5inch)
- HPE ProLiant WS Series: WS460c Gen9 (2.5inch), WS460c Gen9 Graphics (2.5inch), WS460c Gen9 Graphics Expansion (2.5inch)
- HPE ProLiant XL Series: XL190r Gen9 (2.5inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
