Product Information

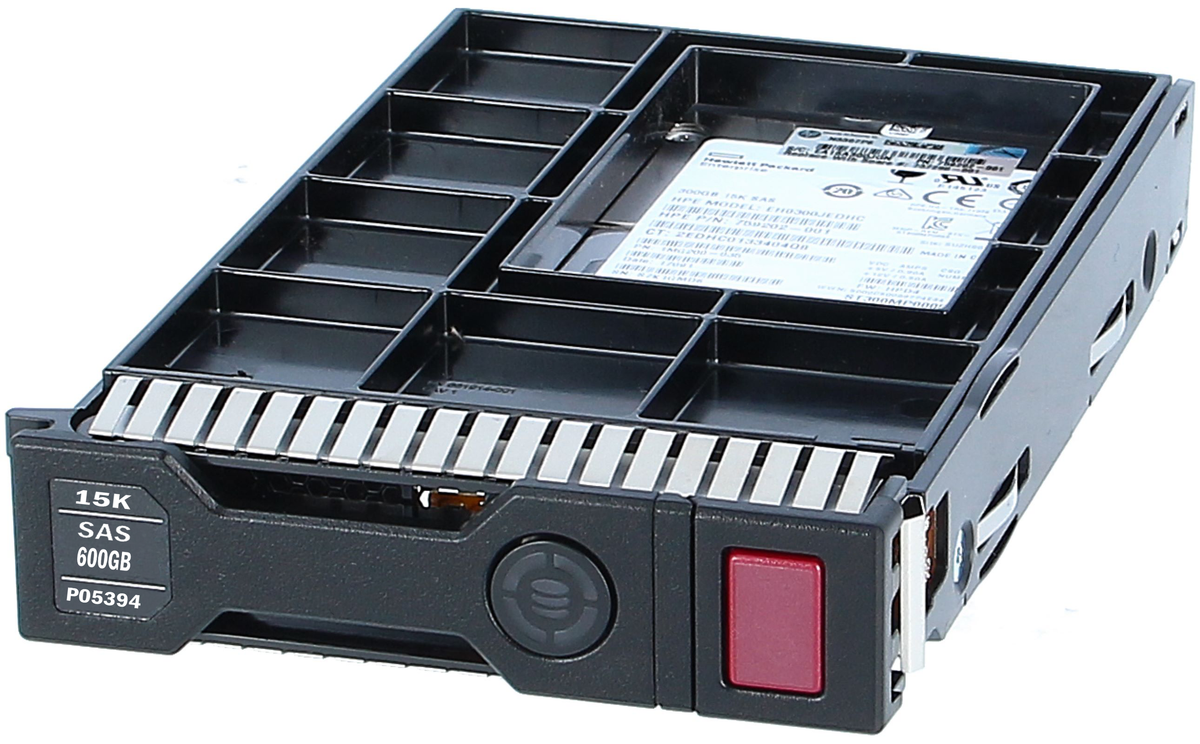

The HPE 875217-002-SCC is a 600GB enterprise hard drive that spins at 15,000 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface. The drive comes with HPE digitally signed firmware and an HPE Smart Carrier Converter (SCC). It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 600GB capacity at 15K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- Digitally signed firmware
- Smart Carrier Converter
- Enterprise class
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: 875217-002-SCC
Option Part Number: P04695-B21
Spare Part Number: P05394-001
Model Number: EH000600JWHPN
Assembly Number: 875217-002
General
Device Type: Hard Drive - Hot-Swap
Capacity: 600 GB
Form Factor: 3.5 inch LFF
Interface: SAS 12 Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512n
Carrier Type: Smart Carrier Converter (SCC)
Workload: Enterprise
Features: Advanced Format 512n, Digitally Signed Firmware
Bundled with: HPE Smart Carrier Converter
Performance
Transfer Rate Synchronous (Max): 12Gb/sec
Drive Rotation Speed: 15000 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 260
128Kib Random Read (IOPs): 220
128Kib Random 70% Read / 30% Write (IOPs): 220
128Kib Random 50% Read / 50% Write (IOPs): 220
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF Power Consumption Idle Time: 5.60 Watt
Random R/W: 7.20 Watt
Sequential Read: 7.70 Watt
Sequential Write: 6.20 Watt
Product Dimensions & Weight
Height: 5.50 inch
Width: 7.25 inch
Depth: 8.75 inch
Weight: 3.00 lbs
Environmental Parameters
Min Operating Temperature: 50° F (10° C)
Max Operating Temperature: 95° F (35° C)
Compatible Systems
- HPE ProLiant DL Series: DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch) Servers
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
