Product Information

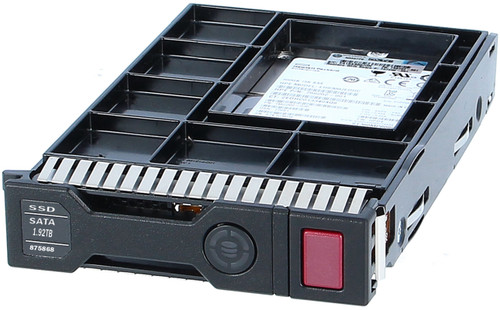

The HPE 875868-001 gives you 1.92TB of mixed use flash storage in a 3.5 inch large form factor (LFF) SSD with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It comes in an HPE Smart Carrier Converter (SCC) for 3.5 inch bays. It is intended for HPE ProLiant Gen9 servers.
Key Features
- 1.92TB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Mixed Use workload
- Digitally signed firmware
- HPE Smart Carrier Converter (SCC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: 875868-001
Option Part Number: 875480-B21
Spare Part Number: 875868-001
Model Number: MK001920GWHRU
Assembly Number: 870668-004
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
Features: Digitally Signed Firmware
Drive Technology (Fill): Air
Plug Type: Hot Plug
Carrier Type: Smart Carrier Converter
Workload: Mixed Use
Bundled With: HPE Smart Carrier Converter Performance 30 Days Writes (TB): 17600
Endurance DWPD: 5.0
Max Seq. Reads Throughput (MiB/s): 500
Max Seq. Writes Throughput (MiB/s): 480
Random Read Avg. Latency uSec (4KiB,Q1): 190
Random Write Avg. Latency uSec (4KiB,Q1): 40
Random Read IOPS (4KiB, Q=16): 54000
Random Writes IOPS (4KiB, Q=16): 32000
MAX Random Read: 61500@Q32
MAX Random Write: 53000@Q4
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" or 3.5" (with included bay adapter) Power Consumption Power Idle Time: 3.22 Watt
Power Random Read: 3.63 Watt
Power Random Write: 12.07 Watt
Power Sequential Read: 4.52 Watt
Power Sequential Write: 12.07 Watt
Power Random R/W: 6.52 Watt
Maximum Power: 13.00
Height: 7 mm
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen9 (3.5 inch), BL460c Gen9 Base (3.5 inch), BL460c Gen9 Entry (3.5 inch), BL460c Gen9 Performance (3.5 inch), BL660c Gen9 (3.5 inch)
- HPE ProLiant DL Series: DL120 Gen9 (3.5 inch), DL120 Gen9 Entry (3.5 inch), DL180 Gen9 (3.5 inch), DL180 Gen9 Base (3.5 inch), DL180 Gen9 Entry (3.5 inch), DL180 Gen9 Storage (3.5 inch), DL20 Gen9 (3.5 inch), DL20 Gen9 Base (3.5 inch), DL20 Gen9 Entry (3.5 inch), DL20 Gen9 Performance (3.5 inch), DL20 Gen9 Solution (3.5 inch), DL20 Gen9 Special Server (3.5 inch), DL380 Gen9 (3.5 inch), DL380 Gen9 Base (3.5 inch), DL380 Gen9 Entry (3.5 inch), DL380 Gen9 High Performance (3.5 inch), DL380 Gen9 Performance (3.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (3.5 inch), DL380 Gen9 Special (3.5 inch), DL388 Gen9 (3.5 inch), DL388 Gen9 Base (3.5 inch), DL580 Gen9 (3.5 inch), DL580 Gen9 Base (3.5 inch), DL580 Gen9 Database (3.5 inch), DL580 Gen9 High Performance (3.5 inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (3.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (3.5 inch), for Microsoft Azure Stack
- HPE ProLiant ML Series: ML110 Gen9 (3.5 inch), ML110 Gen9 Base (3.5 inch), ML110 Gen9 Entry (3.5 inch), ML150 Gen9 (3.5 inch), ML150 Gen9 Base (3.5 inch), ML150 Gen9 Entry (3.5 inch), ML150 Gen9 Performance (3.5 inch), ML30 Gen9 (3.5 inch), ML30 Gen9 Base (3.5 inch), ML30 Gen9 Entry (3.5 inch), ML30 Gen9 Performance (3.5 inch), ML30 Gen9 Solution (3.5 inch), ML350 Gen9 (3.5 inch), ML350 Gen9 Base (3.5 inch), ML350 Gen9 Entry (3.5 inch), ML350 Gen9 Performance (3.5 inch)
- HPE ProLiant WS Series: WS460c Gen9 (3.5 inch), WS460c Gen9 Graphics (3.5 inch), WS460c Gen9 Graphics Expansion (3.5 inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
