Product Information

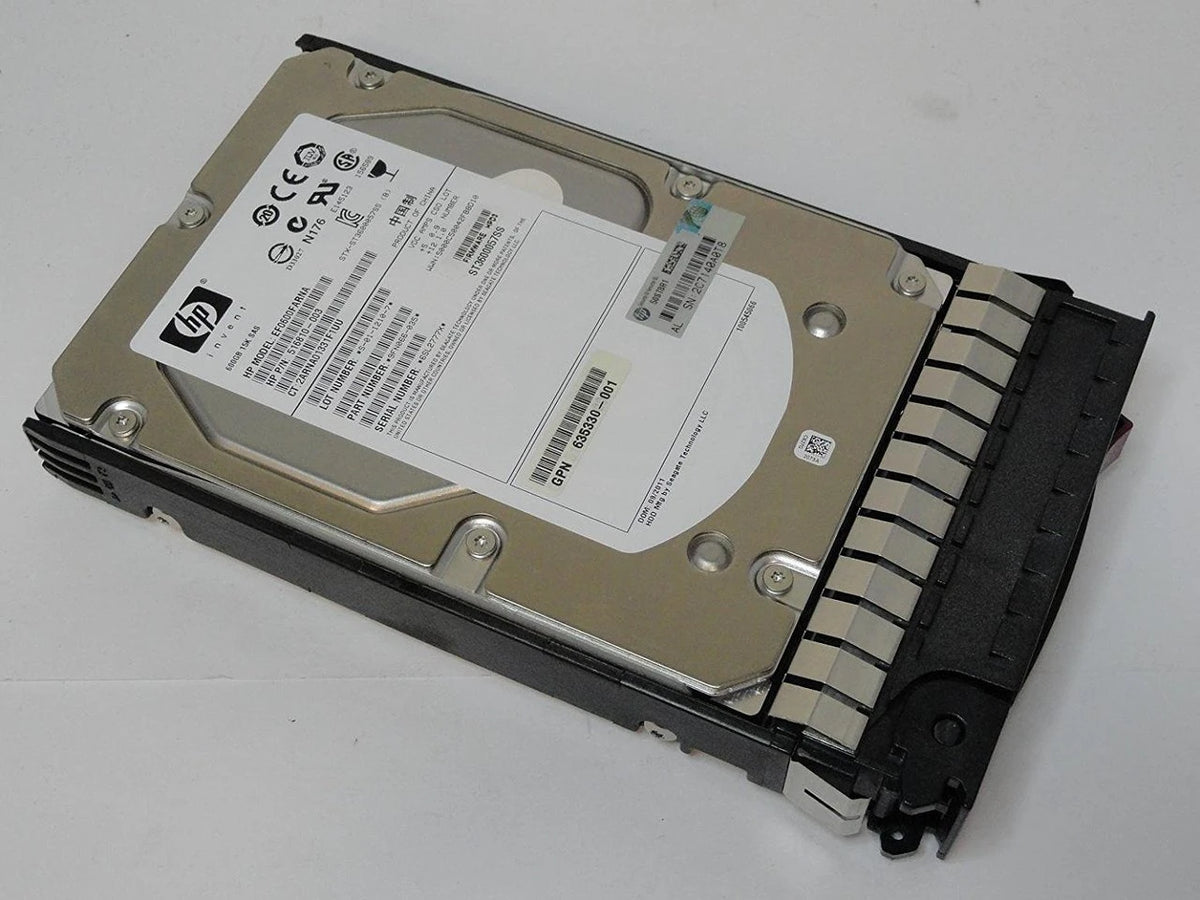

HPE 9FN066-035 600GB Enterprise Hard Drive for ProLiant Gen5 to Gen7 Servers and Storage Array. This 3.5 inch Large Form Factor (LFF) drive spins at 15,000 RPM, connects through a dual port SAS 6Gbps interface and supports hot swap installation.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Enterprise class SAS drives are built for servers that stay busy around the clock. A 15,000 RPM spindle keeps access times short, which makes this drive a good match for databases, virtual machines, email servers and other workloads that handle lots of small, random reads and writes.
The SAS 6Gbps interface gives this drive a reliable, server grade connection. SAS drives can be swapped while the system is running and are designed for nonstop duty in rack servers and storage arrays.
Part Numbers
Brand: HPE
MPN: 9FN066-035
Model Number: 9FN066-035 (ST3600057SS)
Option Part Number: 516828-B21
Spare Part Number: 517354-001
Model Number: EF0600FATFF
Model Number: EF0600FARNA
Assembly Number: 516810-003
Assembly Number: 533871-003
Drive Details
Device Type: Hard Drive - Hot-Swap
Capacity: 600 GB
Form Factor: 3.5 inch LFF x 1/3H
Interface Type: SAS 6Gbps (Serial Attached SCSI 2)
Buffer Size: 16 MB
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Carrier Type: Standard Carrier
Workload Type: Enterprise
Features: Dual Port
Bundled with: HPE Standard Carrier
Speed and Throughput
Drive Transfer Rate: 6 Gb/sec (external)
Spindle Speed: 15000 RPM
Average Seek Time: 3.5 ms
Maximum Seek Time: 6.8 ms
Track-to-Track Seek Time: 0.2 ms
Connection
Interfaces: 2 x SAS 6Gb/s (Serial Attached SCSI 2)
Compatible Bays: 1 x hot-swap - 3.5" LFF x 1/3H
Operating Environment
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Size
Width: 4.60 inch
Depth: 7.40 inch
Height: 1.00 inch
Compatible Systems
HPE ProLiant DL Series: DL120 G6 (3.5 inch), DL120 G6 Performance, DL120 G7 (3.5 inch), DL120 G7 Base (3.5 inch), DL120 G7 Entry (3.5 inch), DL120 G7 Performance (3.5 inch), DL160 G5 (3.5 inch), DL160 G5p (3.5 inch), DL160 G6 (3.5 inch), DL160se G6 (3.5 inch), DL165 G5, DL165 G5p, DL165 G5p Base, DL165 G5p Performance, DL165 G6, DL165 G7 (3.5 inch), DL165 G7 Base (3.5 inch), DL165 G7 Entry (3.5 inch), DL180 G5, DL180 G6 (3.5 inch), DL185 G5, DL2x170h G6, DL320 G6 (3.5 inch), DL320 G6 Entry, DL320 G6 High Efficiency, DL320 G6 Performance, DL370 G6 (3.5 inch), DL380 G6 (3.5 inch), DL380 G7 (3.5 inch), DL385 G5p (3.5 inch), DL385 G6 (3.5 inch), DL385 G6 Performance (3.5 inch), DL385 G7 (3.5 inch), DL4x170h G6
HPE ProLiant ML Series: ML110 G7 (3.5 inch), ML150 G6, ML150 G6 Base, ML150 G6 Performance, ML310 G5p, ML330 G6, ML330 G6 Base, ML350 G5 (3.5 inch), ML350 G5 Entry, ML350 G6 (3.5 inch), ML350 G6 Entry, ML370 G6 (3.5 inch)
HPE StorageWorks P4300 G2 SAS Storage System, P4500 G2 SAS Storage System
HPE StorageWorks Disk Enclosure D2600
HPE StorageWorks Modular Disk System 600
HPE StorageWorks Modular Smart Array 60
HPE StorageWorks Network Storage Gateway X3400
HPE StorageWorks Network Storage System X1400 G2, X1500 G2, X1600 G2, X3410, X3420
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
