Product Information

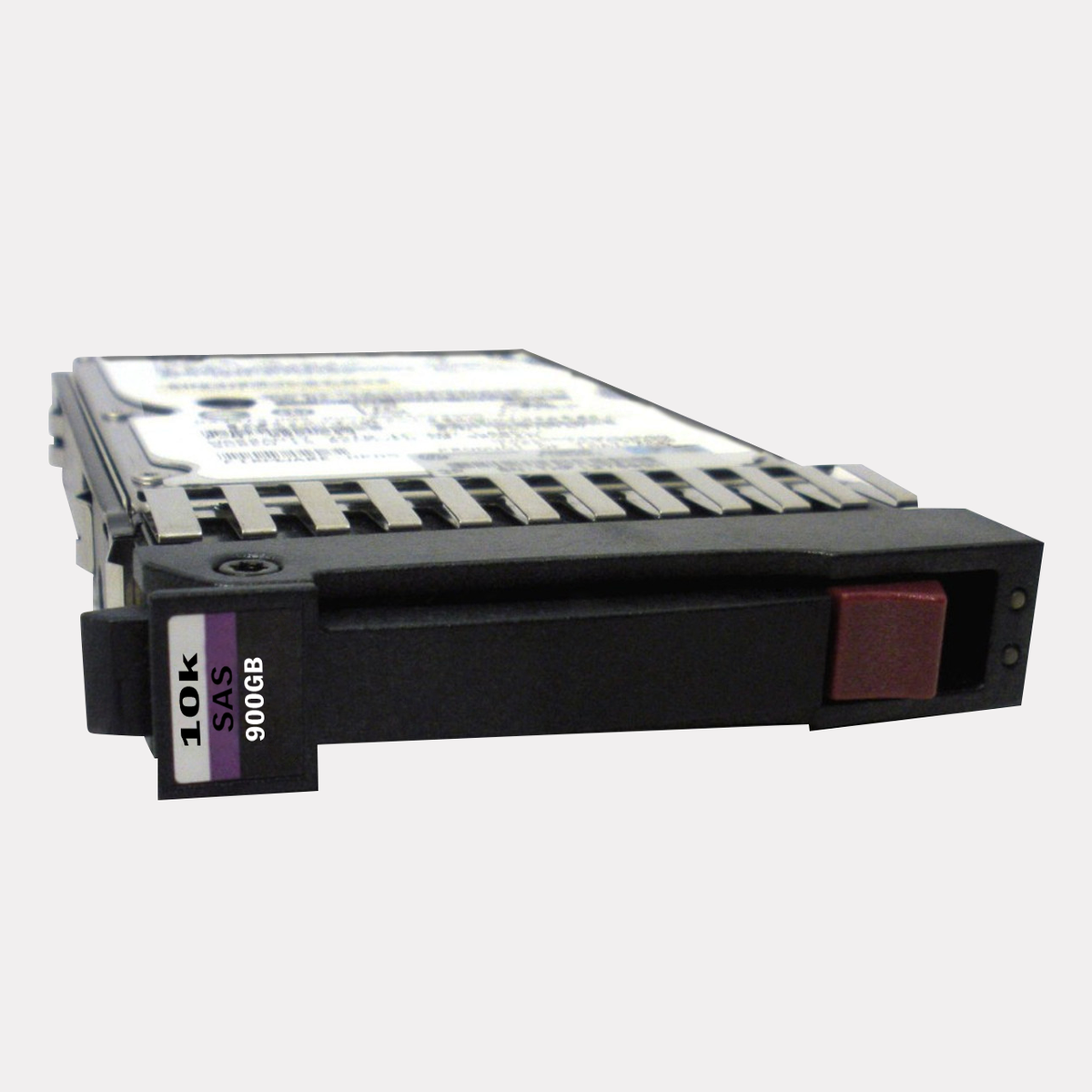

The HPE 9WH066-035 is a 900 GB enterprise class hard drive built for HPE ProLiant Gen1 through Gen7 servers and storage arrays. It spins at 10,000 RPM, uses the 2.5 inch SFF (small form factor) format and connects through a dual port SAS 6Gb/s interface. The drive is hot swappable, so it can be installed or replaced while the system keeps running.
SAS is designed for data center duty, where storage has to stay online around the clock and serve many users at once.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 9WH066-035
Model Number: EG0900FCVBL
Assembly Number: 693569-004
HPE GPN: 507129-18
Drive Details
Drive Type: Hard Drive - Hot-Swap
Storage Capacity: 900 GB
Form Factor: 2.5 inch SFF
Host Interface: SAS 6Gbps (Serial Attached SCSI 2)
Sector Size (Bytes): 512
Internal Fill: Air
Carrier: Standard Carrier
Workload Class: Enterprise
Features: Dual Port
Ships With: HPE Standard Carrier
Performance
Drive Transfer Rate: 600 MBps (external)
Seek Time: 3.8 ms (average) / 7.4 ms (max)
Track-to-Track Seek: 0.21 ms
Rotational Speed: 10000 RPM
Connections
Ports: 1 x Serial Attached SCSI 2
Fits Bay: 1 x hot-swap - 2.5" SFF
Size and Weight
Width: 3.00 inch
Depth: 4.70 inch
Height: 0.60 inch
Weight: 25.6 oz
Operating Environment
Operating Temp (Min): 50 °F
Operating Temp (Max): 95 °F
Compatible Systems
- HPE ProLiant BL Series: BL460c G7 (2.5 inch), BL465c G7 (2.5 inch), BL620C G7 (2.5 inch), BL680c G7 (2.5 inch), BL685c G7 (2.5 inch)
- HPE ProLiant DL Series: DL120 G7 (2.5 inch), DL165 G7 Performance (2.5 inch), DL360 G7 Central Management Server (2.5 inch), DL360 G7 Efficiency (2.5 inch), DL360 G7 Special Server (2.5 inch), DL370 G6 High Performance (2.5 inch), DL370 G6 Special Server (2.5 inch), DL380 G7 Efficiency (2.5 inch), DL380 G7 Special Server (2.5 inch), DL385 G7 HE (2.5 inch), DL385 G7 Performance (2.5 inch), DL580 G7 (2.5 inch), DL580 G7 Base (2.5 inch), DL580 G7 High Performance (2.5 inch), DL585 G7 (2.5 inch), DL585 G7 Base (2.5 inch), DL585 G7 Performance (2.5 inch), DL980 G7 (2.5 inch)
- HPE ProLiant ML Series: ML110 G7 Base (2.5 inch), ML110 G7 Entry (2.5 inch), ML370 G6 Special Server (2.5 inch)
- HPE ProLiant SL Series: SL390s G7 (2.5 inch), SL390s G7 1U Left Half Width tray (2.5 inch), SL390s G7 1U Left Tray Node Server (2.5 inch), SL390s G7 1U Right Half Width tray (2.5 inch), SL390s G7 1U Right Tray Node Server (2.5 inch), SL390s G7 4U Left Half Width tray (2.5 inch), SL390s G7 4U Right Half Width tray (2.5 inch), SL390s G7 Base 1U left Half Width tray (2.5 inch), SL390s G7 Base 1U Right Half Width tray (2.5 inch), SL390s G7 Entry 1U Left Half Width tray (2.5 inch), SL390s G7 Entry 1U Right Half Width tray (2.5 inch), SL390s G7 Performance 1U left Half Width tray (2.5 inch), SL390s G7 Performance 1U Right Half Width tray (2.5 inch)
- HPE ProLiant WS Series:WS460c G6 Graphics Expansion Blade (2.5 inch)
- HPE D2700, P2000 G3, SB40c storage blade
- HPE Integrity BL860c i2 (2.5 inch), BL860c i2 Base (2.5 inch), BL860c i4 (2.5 inch), BL870c i2 (2.5 inch), BL890c i2 (2.5 inch), BL890c i2 Base (2.5 inch)
- HPE Modular Smart Array 1040 Dual Controller SFF Storage, P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit, P2000 G3 SAS Dual Controller SFF Array
- HPE StorageWorks D2200sb PCIe Storage Blade
- HPE StorageWorks Modular Smart Array P2000 G3 SAS Dual Controller, P2000 G3 SAS Dual Controller SFF Array
- HPE StorageWorks Network Storage Blade X1800sb G2
- HPE StorageWorks Network Storage Gateway X3800sb G2
- HPE StorageWorks Network Storage System X1600 G2, X1800 G2 Product Features
- HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second and accelerate data transfer (I/O) speeds. Drives are backed by over 3.35 million hours of the industry's most rigorous testing and qualification program ensuring customer's reliable, rugged drives. Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
