Product Information

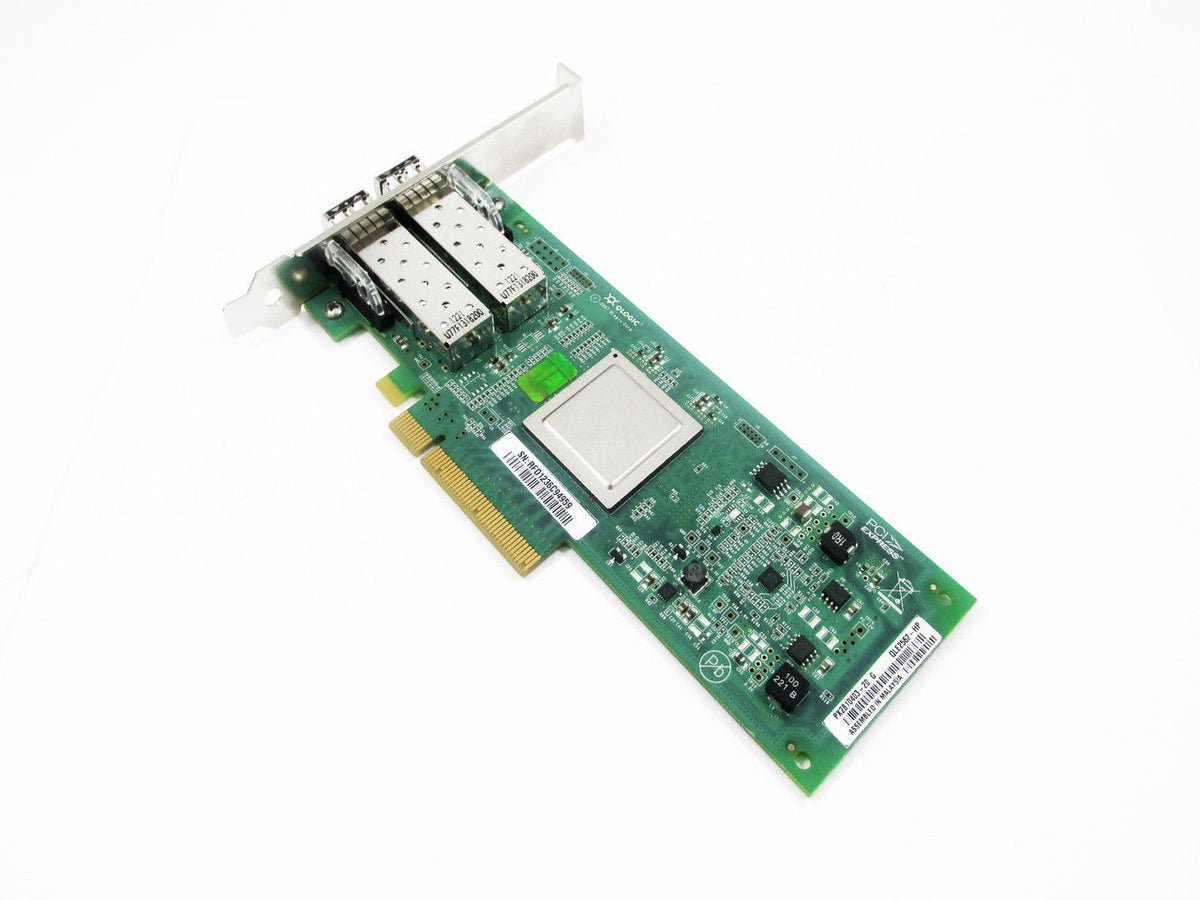

The HPE AJ764A is a dual port 8Gb Fibre Channel HBA with SFP+ connections and auto-negotiation, made for HPE ProLiant Gen6 and Gen7 servers. It is a low profile PCIe 2.0 plug-in card.
Key Features
- Double the I/O of 4Gb FC HBAs
- Works with existing 4Gb and 2Gb storage networks
- Quicker data access for rich media, virtualization, databases and backup/restore
- Includes features that lower power use in the server
- 8.5Gb/s Fibre Channel data rate
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: AJ764A
Option Part Number: AJ764A
Spare Part Number: 489191-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-In Card - Low Profile
Adapter Details
Bus Type: PCI Express x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 8Gb Fibre Channel (SW)
Transfer Rate: 8.5 Gbps
Features: Auto-Negotiation
Connections
Ports: 8Gb Fibre Channel x 2, 2 x 8Gb Fibre Channel (short wave) - LC multi-mode x 2
Expansion Slots: 2 (total) / 0 (free) x SFP+
Slot: 1 x PCI Express x8 System Requirements
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2003, SunSoft Solaris 10, Red Hat Enterprise Linux 4 for x86/ AMD64/ EM64T, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Red Hat Enterprise Linux 5 for Intel x86 / AMD64 / EM64T, Microsoft Windows Server 2008, VMware ESX Server 3.5
Size and Weight
Depth: 6.60 inch
Height: 2.50 inch
Power and Environment
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90%
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen7, DL120 Gen7 Base, DL120 Gen7 Entry, DL120 Gen7 Performance, DL160 Gen6, DL160 Gen8, DL160 Gen8 Entry, DL160 Gen8 Performance, DL160se Gen6, DL165 Gen6, DL165 Gen7, DL165 Gen7 Base, DL165 Gen7 Performance, DL170h Gen6, DL180 Gen6, DL2x170h Gen6, DL320 Gen6 Performance, DL360 Gen7, DL360 Gen7 Base, DL360 Gen7 Central Management Server, DL360 Gen7 Efficiency, DL360 Gen7 Entry, DL360 Gen7 Performance, DL360e Gen8, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL370 Gen6 High Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Efficiency, DL380 Gen7 Entry, DL380 Gen7 Performance, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 Gen6, DL385 Gen6 Base, DL385 Gen6 Entry, DL385 Gen6 High Performance, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL4x170h Gen6, DL580 G5 Highly Serviceable Tower, DL580 Gen7, DL580 Gen7 Base, DL580 Gen7 High Performance, DL585 Gen6, DL585 Gen6 Base, DL585 Gen6 Performance, DL585 Gen7, DL585 Gen7 Base, DL585 Gen7 Performance, DL785 Gen6, DL785 Gen6 Base, DL785 Gen6 Performance, DL980 Gen7
- HPE ProLiant ML Series: ML330 Gen6, ML330 Gen6 Base, ML330 Gen6 Entry, ML350 Gen6
- HPE ProLiant SL Series: SL160s Gen6, SL160z Gen6, SL170z Gen6, SL210t Gen8 1U Node, SL2x170z Gen6
- HPE StorageWorks MSL2024 Ultrium 3000, MSL2024 Ultrium 3280, MSL4048 Ultrium 3000, MSL4048 Ultrium 3280, MSL8096 Ultrium 3280, SN6000C 16-ports Active Fabric Switch, SN6000C 32-ports Active Fabric Switch
- HPE StorageWorks 1/8 G2 Tape Autoloader Ultrium 3000
- HPE StorageWorks Network Storage Gateway X3400, X3400 G2, X3800, X3800 G2, X9300
- HPE StorageWorks Network Storage System X1600, X1600 12TB SATA Model, X1600 292GB SAS Model, X1600 7.5TB SAS Model, X1800, X1800 2.4TB SAS Model, X1800 292GB SAS Model, X1800 3.6TB SAS Model, X1800 6TB SATA Model
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
