Product Information

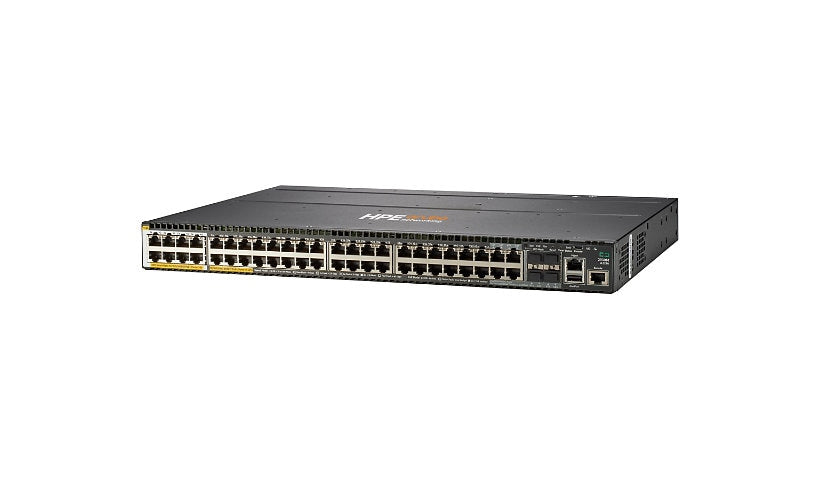

HPE's Aruba Networking 2930M 40G 8 Smart Rate PoE+ 1-Slot (JL323A) is a stackable Layer 3 switch with 40 Gigabit PoE+ ports, eight 1/2.5/5/10G Smart Rate PoE+ ports and one expansion slot. It supports up to 1440 W of PoE and 320 Gbps of switching capacity. Power supplies are not installed.
Key Features
- 40 x 10/100/1000 RJ-45 PoE+ ports
- 8 x 1/2.5/5/10G Smart Rate PoE+ ports
- 1 expansion slot
- Up to 1440 W PoE
- 320 Gbps switching, 100 Gbps stacking
- Power supplies not installed
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 2930M 40G 8 HPE Smart Rate PoE+ 1-slot Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
Routing Protocol: CIDR, ECMP, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
Authentication Method: CHAP, Extensible Authentication Protocol (EAP), PAP, RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: MD5, SSL, TLS
Performance: Latency (1 Gbps): 3.1 µs, Latency (10 Gbps): 3.4 µs, Latency (2.5 Gbps): 6.5 µs, Latency (5 Gbps): 4.2 µs, Stacking bandwidth: 100 Gbps, Switching capacity: 320 Gbps, Throughput: 112 Mpps
Capacity: IPv4 routing table entries: 2000, IPv6 routing table entries: 1000, OSPF routes: 200, RIP routes: 10000, Static routes: 256
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, LLDP-MED, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP BPDU Guard, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
Connectivity
Ports: 48
Port Quantity: 36
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP
Ports (3rd) Quantity: 8
Interface Provided: 1 x 1000Base-T management, 1 x serial (console), 1 x USB Type B, 36 x 1000Base-T PoE+, 4 x 1000Base-T PoE+, 8 x 1/2.5/5/10GBase-T PoE+
Expansion Slots: 1 (total) / 1 (free) x expansion slot, 1 (total) / 1 (free) x Stacking Module slot
Power Over Ethernet (PoE): PoE+
QSFP Slots: 1/2.5/5/10GBase-T (PoE+)
Power
Device Type: Internal power supply (not installed)
PoE Budget: 1440 watt
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A9
Processors Installed: 1
Clock Speed: 1.016 GHZ
RAM Installed: 1 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.8 inch
Weight: 9.81 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x
Compliant Standards: CISPR 22 Class A, CISPR 24, CNS 13438, CSA C22.2 No. 60950-1-07 Second Edition, EN 55022:2010, EN 55024:2010, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-3, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825-1:2007, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
