Product Information

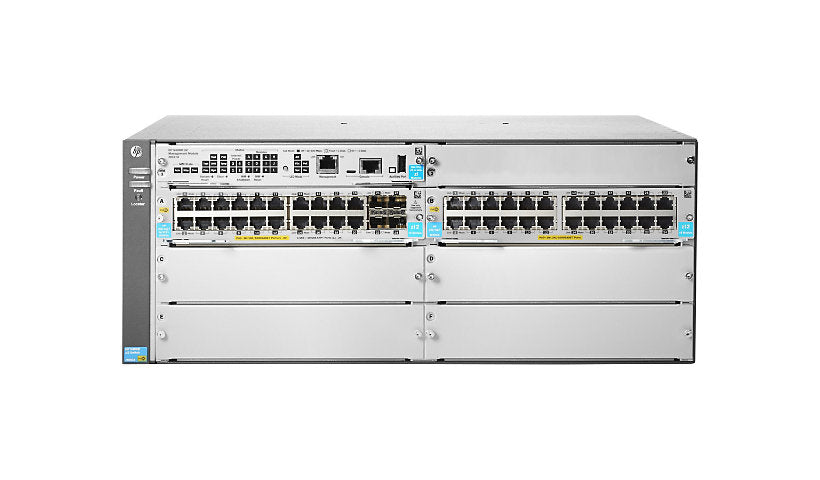

HPE's Aruba Networking 5406R zl2 (JL003A) is a six slot modular chassis bundle with two modules installed, giving 44 Gigabit PoE+ ports and 10G SFP+ ports. It offers 960 Gbps of routing and switching capacity and includes a fan tray. Power supplies are not included.
Key Features
- 44 x 10/100/1000 RJ-45 PoE+ ports
- 1/10G SFP+ ports
- 6 slot chassis, 2 modules installed
- 960 Gbps routing/switching
- Fan tray included
- Power supplies not installed
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 5406R 44GT PoE+ / 4SFP+ (No PSU) v3 zl2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SMON, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP, XRMON
Routing Protocol: BGP, IGMP, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, PIM-DM, PIM-SM, RIP-1, RIP-2, Static IP routing, Static IPv6 routing, VRRP
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: SSL
Performance: Routing/switching capacity: 960 Gbps, Switching fabric bandwidth: 1015 Gbps, Throughput: up to 571.4 Mpps
Capacity: IPv4 routing table entries: 10000, IPv6 routing table entries: 5000
MAC Address Table Size: 64K entries
Jumbo Frame Support: Yes
Features: Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), Bandwidth control, BOOTP support, Class of Service (CoS), DHCP client, DHCP protection, DHCP relay, DHCP support, DiffServ support, Dual firmware images, Dynamic ARP protection, Energy Efficient Ethernet, Fan tray, Flow control, Full duplex mode, GARP VLAN Registration Protocol (GVRP), Half duplex mode, IGMP snooping, IPv4 support, IPv6 support, MACsec support, Management Information Base (MIB), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Non-Stop Routing (NSR), Port Security, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Routing, sFlow v5, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Trunking, Tunneling, Type of Service (ToS), Uni-Directional Link Detection (UDLD), VLAN support
Connectivity
Ports: 44
Port Quantity: 44
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 44 x 1000Base-T RJ-45, 8 x Gigabit / 10Gbit LAN SFP+
Expansion Slots: 1 (total) / 0 (free) x SD Memory Card, 6 (total) / 4 (free) x expansion slot
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply (not installed)
Memory and Processor
Processor Brand: Freescale
Processor Number: P2020
Processors Installed: 1
Clock Speed: 1.2 GHZ
RAM Installed: 4 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 1 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 4
Rack Mounting Kit: Included
Supported Devices: 6
Installed Devices/Modules: 2
Dimensions and Weight
Height: 6.9 inch
Width: 17.5 inch
Depth: 17.8 inch
Weight: 28.11 lbs
Included Items
Included Accessories: Fan tray
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
