Product Information

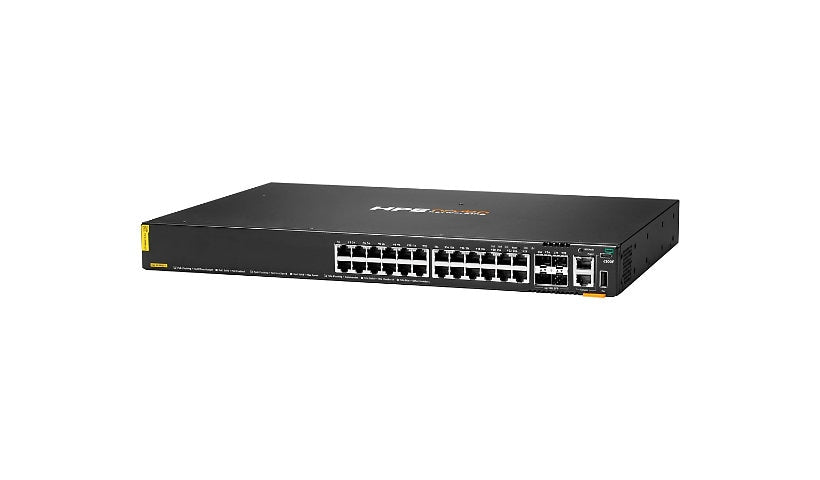

The HPE Aruba CX 6200F (JL725B) is a 1U stackable access switch with 24 Gigabit PoE+ ports and four 1/10GbE SFP+ uplinks. It shares a 370 W PoE budget and stacks up to eight units with 40 Gbps of stacking bandwidth, at distances up to 10 km. Layer 3 features include OSPF, RIP and VRRP.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports (Class 4)
- 4 x 1/10GbE SFP+ uplinks
- 370 W PoE budget
- Stacks up to 8 units, 40 Gbps stacking
- Layer 3: OSPF, RIP, VRRP
- ARM Cortex-A72 1.8 GHz CPU, 8 MB packet buffer
- 1U rack mount
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6200F 24G Class4 PoE 4SFP+ 370W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, MIB, RMON
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, RIP-2
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: FIPS 140-2, SSL
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Stacking bandwidth: 40 Gbps, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps
Capacity: IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 5120, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 1280, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 5120, Packet buffer size: 8 MB
Jumbo Frame Support: 9220 bytes
Stackable: Stackable
Features: Address Resolution Protocol, Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), Egress Queue Shaping (EQS), Link Layer Discovery Protocol, Rapid PVST+ (RPVST+), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support
Max Units In A Stack: 8
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+ (uplink)
Interface Provided: 1 x console RJ-45, 1 x management, 1 x USB Type A host, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W, 4 x 100/1000/10G SFP+ uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
PoE Budget: 370 watt
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12 inch
Weight: 9.68 lbs
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32:2015 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, CISPR 32:2016 Class A, CISPR 35: 2016, CNS 15598-1:2020, EN 55032:2015 /A11:2020, Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, EN 63000:2018, FCC 47 CFR part 15B:2021 Class A, GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC 63000:2018, KC 62368-1: 2021-08, KS C 9832, Laser Class 1, UL 62368-1 Third Edition, VCCI-CISPR 32 Class A
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
