Product Information

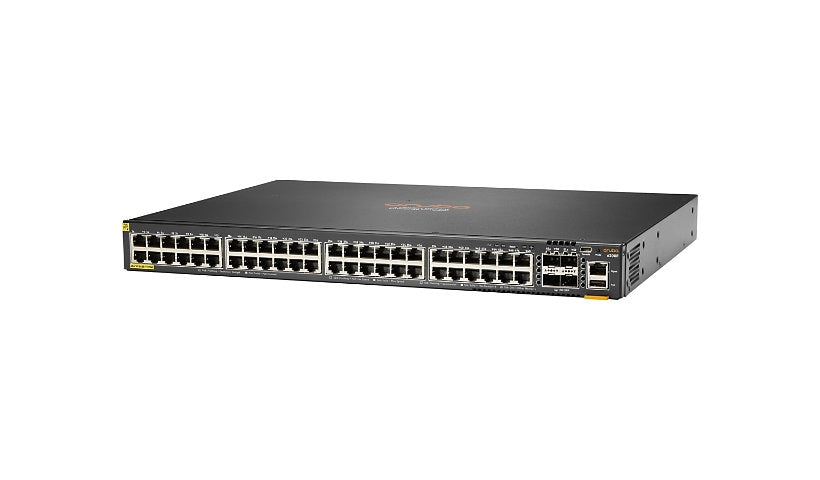

The HPE Aruba CX 6200F (JL727A) is a stackable 1U access switch with 48 Gigabit PoE+ ports and four 1/10GbE SFP+ uplinks. It shares a 370 W PoE budget and offers 176 Gbps of switching capacity. It runs the AOS-CX operating system with the Aruba Network Analytics Engine for monitoring and troubleshooting.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports (Class 4)
- 4 x 1/10GbE SFP+ ports
- 370 W PoE budget
- 176 Gbps switching capacity, 130.9 Mpps
- Layer 3, stackable, managed
- ARM Cortex-A72 1.8 GHz CPU
- 1U rack mount
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6200F 48G Class4 PoE 4SFP+ 370W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Switching capacity: 176 Gbps, Throughput: 130.9 Mpps
Stackable: Stackable
Connectivity
Ports: 52
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 4 x 1/10Gbit LAN SFP+, 48 x 10/100/1000 Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: AC 100-120/200-240 volt
Power Consumption Operational: 76 watt
PoE Budget: 370 watt
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.9 inch
Weight: 11.13 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
