Product Information

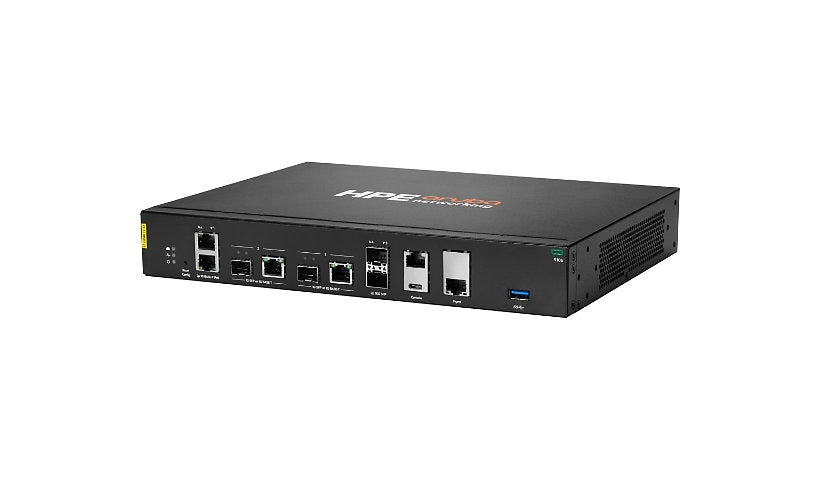

The HPE Aruba Networking 9106 (S5R48A, US, TAA) is a cloud managed hybrid gateway for medium and large branches and small campuses. It has two 10G SFP+ ports, two Gigabit RJ-45/SFP combo ports, two Gigabit PoE ports, management and console ports and USB 3.0, plus a 2 post rack kit. This is a branch gateway, not an access point.
Key Features
- Hybrid branch gateway
- 2 x 10G SFP+
- 2 x 1G RJ-45/SFP combo
- 2 x Gigabit PoE ports
- 1 PSU installed, redundant optional
- TAA compliant
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: 9106 (US) TAA
Product Type: Gateway
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Capacity: Access lists: 2678, ARP table: 16000, Concurrent IPSec tunnels: 16000, Configurable bandwidth contracts: 1000, DHCP clients: 16000, IPv4 routes (static): 2000, IPv6 neighbor table entries: 32000, Maximum bridge table: 256000, Maximum clients (user MAC): 8000, Maximum clients per cluster: 32000, Maximum data path/ firewall sessions: 2000000, Maximum devices (APs) per cluster: 4000, Maximum devices (APs) per gateway: 2000, Maximum routes: 32000
Network Device: Encrypted throughput AES-CBC-128: 10 Gbps, Encrypted throughput AES-CBC-256: 10 Gbps, Encrypted throughput AES-GCM-128: 10 Gbps, Encrypted throughput AES-GCM-256: 10 Gbps, GRE encrypted throughput: 10 Gbps, Throughput: 10 Gbps
Operating System Required: ArubaOS 10.7.2.1, ArubaOS 8.1.3.1
Connectivity
Ports: 6
Interface Provided: 1 x console - RJ-45, 1 x console - USB-C, 1 x management - RJ-45, 1 x USB 3.0 - Type A, 2 x 10 Gigabit Ethernet - SFP+, 2 x 1000Base-T - RJ-45/SFP, 2 x Ethernet 1000 - RJ-45 - 60 W
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 165 watt
Power Supplies Installed: 1
Redundant Power Supply: Optional
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
MTBF: 236,076 Hours
Physical Characteristics
Form Factor: Desktop
Height (Rack Units): 1
Status Indicators: Cloud, Power, Status
Dimensions and Weight
Height: 1.7 inch
Width: 11.6 inch
Depth: 7.9 inch
Weight: 5.08 lbs
Included Items
Included Accessories: Rack mounting kit (2 post)
Certifications and Listing
Compliant Standards: AS/NZS CISPR32 Class B, CNS 13438 Class B, CSA 62368-1: 2014, CSA 62368-1: 2019, EN 300 386, EN/IEC 62328-1 Second Edition, EN55032 Class B, EN55035, FCC Part 15 Class B, ICES-003 Class B, IEC/EN 62368-1 Third Edition, KS C 9832:2019, KS C 9835:2019, UL 62368-1:2014, UL 62368-1:2019, VCCI Class B
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - parts and labor - 1 year, Technical support - software application support - 90 days
Service Activation: No
