Product Information

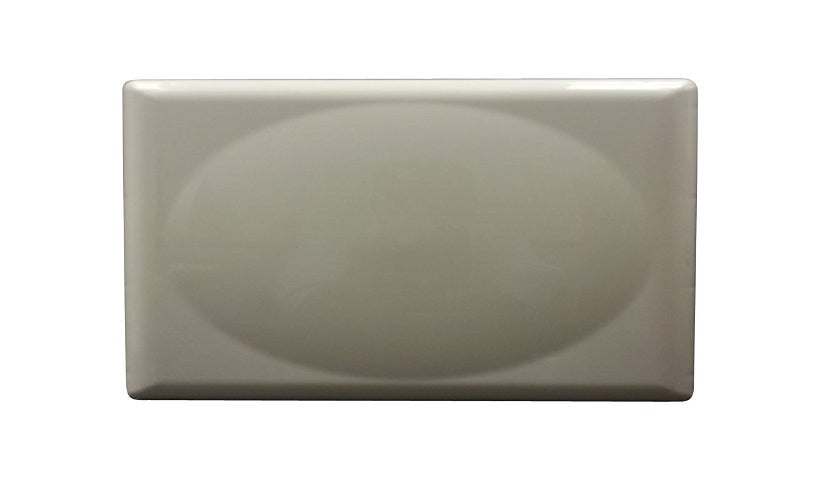

The HPE Aruba ANT-4X4-5314 (JX988A) is an outdoor 4x4 MIMO directional antenna for 4.9 to 6.0 GHz, rated at 14 dBi with 30 degree horizontal and vertical beamwidths. The narrow multi polarized beam suits street coverage, spot coverage, stadium seating sections and point to point links while cutting down the area interference can come from. It has four N type female connectors, 50 ohm impedance and VSWR of 2.0:1, an aluminum and plastic body, and mounts on a wall or pole. It is listed for Aruba AP-584, AP-585 and AP-587 unified APs.
Key Features
- 4x4 MIMO directional antenna
- 4.9 to 6.0 GHz, 14 dBi
- 30 x 30 degree beam
- 4 N type female connectors
- Wall or pole mount, outdoor
- For Aruba AP-584/585/587
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: ANT-4X4-5314
Product Type: Antenna
Category of Accessory: Antennas
Compatibility Specs: HPE Aruba AP-584 (EG) Unified, AP-584 (IL) Unified, AP-584 (JP) Unified, AP-584 (RW) Unified, AP-584 (US) Unified, AP-585 (EG) Unified, AP-585 (IL) Unified, AP-585 (JP) Unified, AP-585 (RW) Unified, AP-587 (EG) Unified, AP-587 (IL) Unified, AP-587 (JP) Unified, AP-587 (RW) Unified, AP-587 (US) Unified
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Antenna Gain: 14 dBi
Antenna Placement: Outdoor, Pole mount, Wall-mountable
Frequency Range: 4.9 - 6.0 GHz
Directivity: Directional
Features: MIMO Technology
Connectivity
Connector Provided: 4 x N-Series connector female
Technical Information
Impedance: 50 ohm
Horizontal Beamwidth: 30°
Vertical Beamwidth: 30°
Voltage Standing Wave Ratio (VSWR): 2.0:1
Min Operating Temperature: -49 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Materials: Aluminum, Plastic
Dimensions and Weight
Height: 10.2 inch
Width: 10.2 inch
Depth: 1.2 inch
Weight: 2.65 lbs
Warranty
Service Activation: No
