Product Information

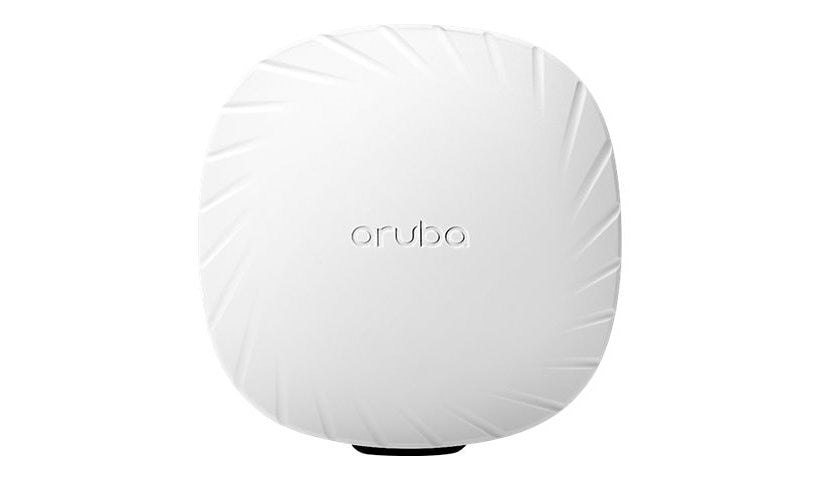

HPE Aruba's AP-503 (R8M99A) is a cost effective campus Wi-Fi 6 access point with up to 1.49 Gbps, OFDMA, WPA3 and Enhanced Open security. It has a Gigabit port, USB, Bluetooth 5.0 and Zigbee, and runs on PoE Class 3 at about 4.7 W.
Key Features
- Wi-Fi 6 dual band, 2x2:2
- Up to 1.49 Gbps
- WPA3, Enhanced Open
- Bluetooth 5.0 and Zigbee
- Gigabit RJ-45, USB 2.0
- PoE Class 3, about 4.7 W
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-503 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: SSL, WPA, WPA2, WPA3
Data Transfer Rate: 1.49 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: BSSIDs per radio: 16, OFDMA units: 8, Wireless clients per Wi-Fi radio: 256
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDMA
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 2
Antenna Form Factor: Internal
Antenna Gain Level: 4.8 DBi
Directivity: Omni-directional
Operating System Required: ArubaOS, InstantOS
Features: 2x2:2 streams
Edition: Campus
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE Class 3
Power
Power Consumption Operational: 4.7 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
MTBF: 106 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Power, Status, System
Dimensions and Weight
Height: 5.7 inch
Width: 1.4 inch
Depth: 5.7 inch
Weight: 8.99 ounce
Certifications and Listing
Compliant Standards: CE/EMC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 60601-1-1, ETS 300 019 Class 1.2, ETS 300 019 Class 2.3, FCC, IEC/EN/UL 60950, ISED, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
