Product Information

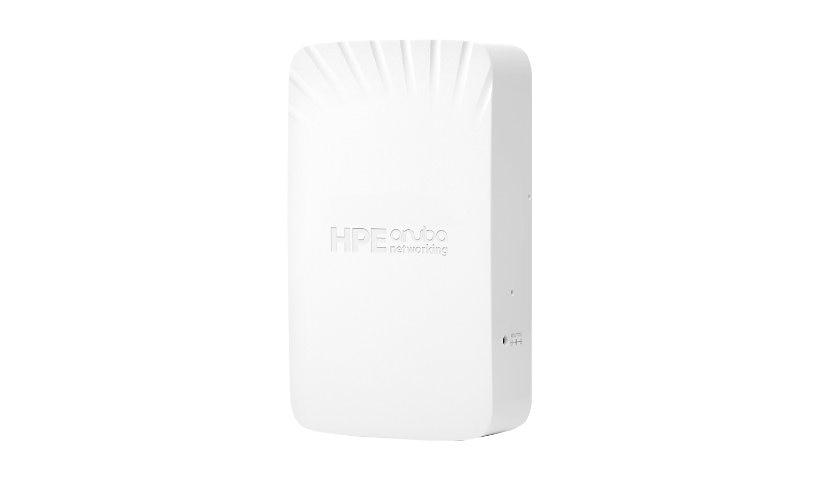

The HPE Aruba AP-505H (R3V49A) is the TAA compliant 500H series hospitality access point, a good fit for hotel rooms, dorms and small remote offices. It offers dual band Wi-Fi 6 up to 1.5 Gbps, a 2.5G uplink, three Gigabit local ports (two with PoE+ out), USB, BLE and Zigbee.
Key Features
- Wi-Fi 6 dual band, 2x2
- Up to 1.5 Gbps
- 2.5G uplink + 3 x Gigabit ports
- 2 x PoE+ output ports
- BLE and Zigbee, USB
- TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-505H (US) TAA Unified Hospitality
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE), WPA, WPA2, WPA3-Enterprise
Data Transfer Rate: 1.5 GBps
Line Coding Format: 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, QPSK
Capacity: BSSIDs per radio: 16, Wireless clients per Wi-Fi radio: 256
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 287 Mbps, Maximum data rate (5 GHz): 1.2 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 2
Antenna Form Factor: Internal
Features: 2T2R MIMO technology, Auto-uplink (auto MDI/MDI-X), DFS support, HPE SmartRate, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 2500Base-T - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 - Type A, 2 x 1000Base-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: PoE, Port status, Power, Status, System
Dimensions and Weight
Height: 5.9 inch
Width: 3.4 inch
Depth: 1.9 inch
Weight: 12.7 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, EN 60950, FCC, IEC 60950, ISED, LVD 2014/35/EU, R&TTE Directive 1995/5/EC, RED 2014/53/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
