Product Information

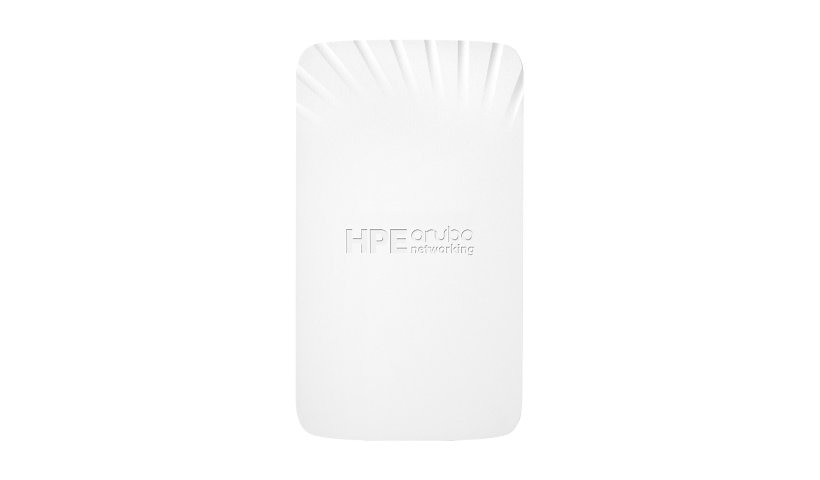

The HPE Aruba AP-505HR (R3V57A) is a 500H series unified remote access point for home and branch use, with dual band Wi-Fi 6 2x2 MIMO and directional antennas. It has a Smart Rate uplink, six Gigabit local ports (two with PoE+ out), USB, Bluetooth 5.0 and Zigbee. A desk mount kit is included.
Key Features
- Wi-Fi 6 dual band, 2x2 MIMO
- Smart Rate RJ-45 uplink
- 6 x Gigabit ports, 2 with PoE+ out
- Bluetooth 5.0 and Zigbee, USB
- About 6 W
- Desk mount kit included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-505HR (US) Unified Remote
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec
Encryption: Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE), SSL, WPA, WPA2, WPA2-MPSK, WPA3, WPA3-Enhanced Open, WPA3-Enterprise
Data Transfer Rate: 1.2 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: BSSIDs per radio: 16, OFDMA units: 8, Wireless clients per Wi-Fi radio: 256
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Aggregate throughput: 1.5 Gbps, Maximum data rate (2.4 GHz): 287 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, VPN throughput (IPSec): 500 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 2
Antenna Form Factor: Internal
Antenna Gain Level: 5.4 DBi
Directivity: Directional
Operating System Required: ArubaOS, InstantOS
Features: 2T2R MIMO technology, 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), Auto-uplink (auto MDI/MDI-X), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Deep Packet Inspection (DPI), DFS support, Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Energy-Efficient Ethernet (EEE), Green AP technology, High Efficiency (HE) support, High-Throughput (HT) support, HPE SmartRate, Intelligent Power Monitoring (IPM), IPSec Virtual Private Network (VPN), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Policy Enforcement Firewall (PEF), Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), SU-MIMO technology, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x console - micro-USB, 1 x HPE Smart Rate - RJ-45, 1 x USB 2.0 - Type A, 2 x 1000Base-T (PoE+) - RJ-45, 4 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 6 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: PoE, Port status, Power, Radio, Status, System
Dimensions and Weight
Height: 5.9 inch
Width: 3.4 inch
Depth: 1.9 inch
Weight: 12.7 ounce
Included Items
Included Accessories: Desk mount kit
Cables: Power adapter
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, EN 60950, EN 62368-1, ETS 300-019, FCC, IEC 60950, IEC 62368-1, ISED, LVD 2014/35/EU, RED 2014/53/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
