Product Information

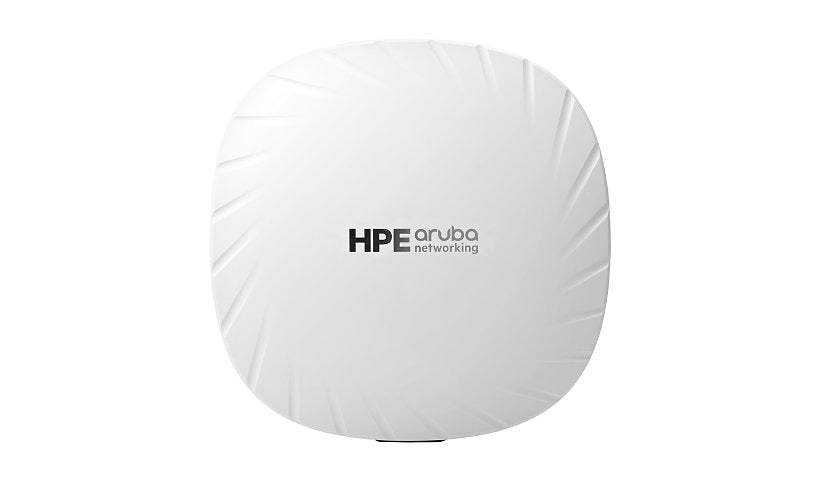

The HPE Aruba AP-515 (Q9H63A) is a 510 series campus access point with 4x4 MU-MIMO, a Smart Rate port and a Gigabit PoE+ port, USB and about 20.8 W draw. The title says Wi-Fi 5 while the description says 802.11ax (Wi-Fi 6) with 2.69 Gbps, so please confirm.
Key Features
- Dual band, 4x4 MU-MIMO
- Wi-Fi standard: see note
- Smart Rate + Gigabit PoE+ RJ-45
- USB 2.0
- About 20.8 W
- In-ceiling design
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-515 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, QPSK
Capacity: BSSIDs per radio: 16, Wireless clients per Wi-Fi radio: 256
Wireless LAN: 802.11a/b/g/n/ac
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM
Network Device: Maximum data rate (2.4 GHz): 575 Mbps, Maximum data rate (5 GHz): 4.8 Gbps, Peak data rate: 5.4 Gbps
Antennas: 4
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS, InstantOS
Features: 4x4 MU-MIMO technology, Adaptive Radio Management (ARM), Advanced Cellular Coexistence (ACC), Air Monitor (AM), AppRF technology, Aruba AirMatch, Auto-uplink (auto MDI/MDI-X), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, Enhanced ClientMatch, Intelligent Power Monitoring (IPM), Link Aggregation Control Protocol (LACP), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MDI/MDI-X switch, MU-MIMO technology, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Quality of Service (QoS), Reset button, Secure Core Technology (SCT), SecureJack, Security lock slot (cable lock sold separately), Space Time Blocking Code (STBC), Space-Time Block Code, Spectrum analyzer, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Wireless intrusion protection
Edition: Campus
Connectivity
Interface Provided: 1 x 1000Base-T (PoE+) - RJ-45, 1 x HPE Smart Rate - RJ-45, 1 x serial / console - micro-USB, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 20.8 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
MTBF: 560,000 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: In-ceiling
Status Indicators: Status, System
Dimensions and Weight
Height: 1.8 inch
Width: 7.9 inch
Depth: 7.9 inch
Weight: 28.57 ounce
Certifications and Listing
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN60601-1-2, ETS 300 019 Class 2.3, ETS 300 019-1-2, FCC, IEC/EN/UL 60950, ISED, LVD 2014/35/EU, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
