Product Information

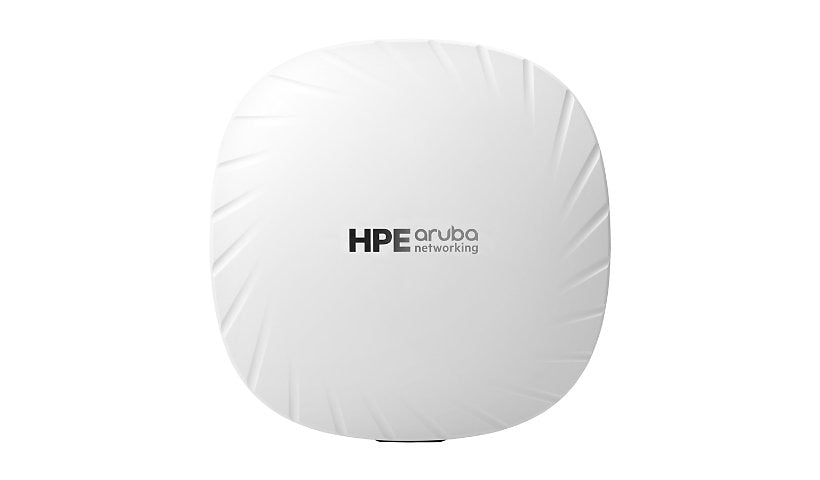

The HPE Aruba AP-515 (Q9H72A) is the TAA compliant rest of world 510 series campus Wi-Fi 6 access point, with 4x4 MU-MIMO, a Smart Rate and a Gigabit port, USB, Bluetooth 5.0 and Zigbee. It draws about 16 W.
Key Features
- Wi-Fi 6 dual band, 4x4 MU-MIMO
- Smart Rate + Gigabit RJ-45
- Bluetooth 5.0 and Zigbee, USB
- About 16 W
- RW version, TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-515 (RW)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA, WPA2, WPA3
Data Transfer Rate: 4.8 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: BSSIDs per radio: 16, OFDMA units: 16, Wireless clients per Wi-Fi radio: 256
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM
Network Device: Aggregate bandwidth: 5.4 Gbps, Maximum data rate (2.4 GHz): 575 Mbps, Maximum data rate (5 GHz): 4.8 Gbps
IoT Communications Technology: Bluetooth, Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 4
Antenna Form Factor: Internal
Antenna Gain Level: 7.5 DBi
Directivity: Omni-directional
Operating System Required: ArubaOS, InstantOS
Features: 4x4 MU-MIMO technology, Adaptive Radio Management (ARM), Advanced Cellular Coexistence (ACC), Air Monitor (AM), AppRF technology, Aruba AirMatch, ClientMatch, Custom deep-sleep mode, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), High Efficiency (HE) support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), LACP support, LED off mode, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Core Technology (SCT), Space Time Blocking Code (STBC), Spectrum analyzer, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Unified AP support, Very High Throughput (VHT) support
Edition: Campus
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x console - micro-USB, 1 x HPE Smart Rate - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 16 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
MTBF: 64 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: In-ceiling
Status Indicators: Status, System
Dimensions and Weight
Height: 1.8 inch
Width: 7.9 inch
Depth: 7.9 inch
Weight: 28.57 ounce
Certifications and Listing
Compliant Standards: CE/EMC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 60601-1-1, EN60601-1-2, ETS 300 019 Class 1.1, ETS 300 019 Class 2.3, FCC, IEC/EN/UL 60950, ISED, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
