Product Information

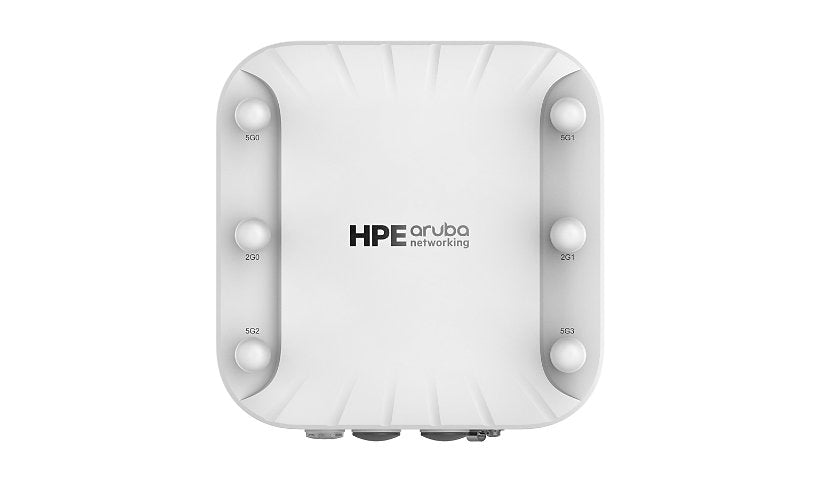

The HPE Aruba AP-518 (R4H03A) is a hardened Wi-Fi 6 access point for warehouses, freezers and stadiums, rated IP55 and -40 to 131 °F. It offers 4x4:4 MU-MIMO up to 4.8 Gbps, Bluetooth 5.0 and Zigbee, a Smart Rate and a Gigabit port, and RP-SMA connectors.
Key Features
- Wi-Fi 6 dual band, 4x4:4
- Up to 4.8 Gbps
- Hardened, IP55, -40 to 131 °F
- Smart Rate + Gigabit RJ-45
- Bluetooth 5.0 and Zigbee
- About 25.6 W
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-518 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA2-MPSK, WPA3-Enhanced Open
Data Transfer Rate: 4.8 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: BSSIDs per radio: 16, OFDMA units: 16, Wireless clients per Wi-Fi radio: 512
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 575 Mbps, Maximum data rate (5 GHz): 4.8 Gbps
IoT Communications Technology: Bluetooth, Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 6
Antenna Form Factor: External detachable
Operating System Required: ArubaOS, InstantOS
Features: 4x4:4 SS MU-MIMO technology, Advanced Cellular Coexistence (ACC), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Deep Packet Inspection (DPI), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Flexible Operation and Management, Green AP technology, High Efficiency (HE) support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), Link Aggregation Control Protocol (LACP), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Reset button, Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Unified AP support, Very High Throughput (VHT) support, Virtual Mobility Controller mode, Wi-Fi 6 technology
Edition: Hardened
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x console - USB-C, 1 x HPE Smart Rate - RJ-45, 2 x antenna - RP-SMA, 4 x antenna - RP-SMA
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 25.6 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: In-ceiling
Status Indicators: Status, System
Dimensions and Weight
Height: 3 inch
Width: 8.7 inch
Depth: 8.7 inch
Weight: 3.31 lbs
Certifications and Listing
Compliant Standards: CB, cTUVus, Directive 2014/35/EU, EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, ETSI 300 019-2-4, FCC, IEC/EN/UL 60950, IP55, ISED, RED 2014/35/EU, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
