Product Information

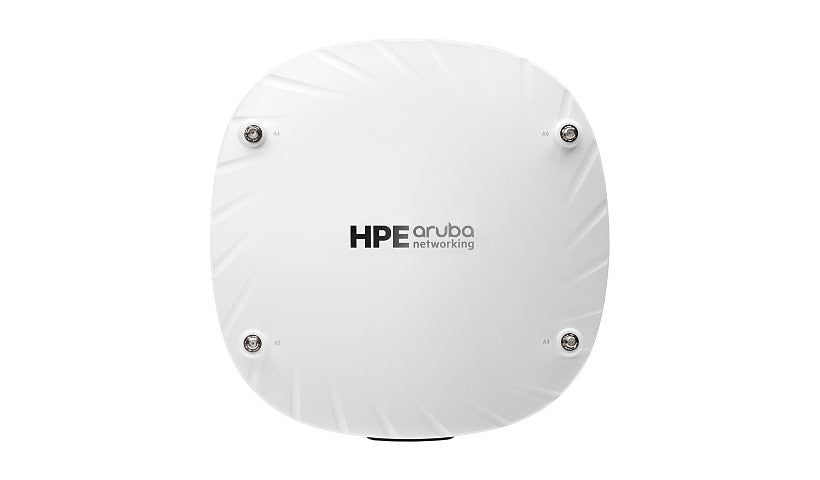

The HPE Aruba AP-534 (JZ332A) is a 530 series campus Wi-Fi 6 access point for dense offices and hospitals, with four RP-SMA connectors for external antennas. It offers 4x4 MU-MIMO, a multi-gig Smart Rate port, USB, Bluetooth 5.0 and Zigbee. Mounting brackets are included.
Key Features
- Wi-Fi 6 dual band, 4x4 MU-MIMO
- Up to 2.4 Gbps (per spec)
- 4 x RP-SMA external antenna ports
- Smart Rate RJ-45, USB 2.0
- Bluetooth 5.0 and Zigbee
- Mounting brackets included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-534 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA, WPA2, WPA3
Data Transfer Rate: 2.4 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: BSSIDs per radio: 16, OFDMA units: 37, Wireless clients per Wi-Fi radio: 1024
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Aggregate bandwidth: 3.55 Gbps, Maximum data rate (2.4 GHz): 1150 Mbps, Maximum data rate (5 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 4
Antenna Form Factor: External detachable
Operating System Required: ArubaOS, InstantOS
Features: 4x4 MU-MIMO technology, Adaptive Radio Management (ARM), Advanced Cellular Coexistence (ACC), Air Monitor (AM), AppRF technology, Aruba AirMatch, ClientMatch, Custom deep-sleep mode, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), High Efficiency (HE) support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), LACP support, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Space Time Blocking Code (STBC), Spectrum analyzer, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Unified AP support, Very High Throughput (VHT) support
Edition: Campus
Connectivity
Interface Provided: 1 x HPE Smart Rate - RJ-45, 1 x USB 2.0 - Type A, 4 x antenna - RP-SMA x 4
Power Over Ethernet (PoE): PoE
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
MTBF: 57 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status, System
Dimensions and Weight
Height: 2.2 inch
Width: 9.4 inch
Depth: 9.4 inch
Weight: 2.2 lbs
Included Items
Included Accessories: Mounting brackets
Certifications and Listing
Compliant Standards: CE/EMC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 60601-1-1, EN60601-1-2, FCC, IEC/EN/UL 60950, ISED
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
