Product Information

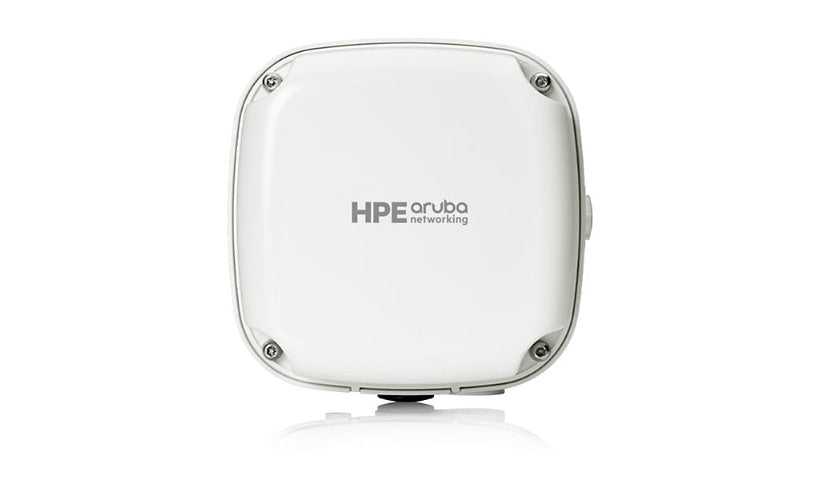

The HPE Aruba AP-567EX (S5D92A) is the ID regional 560EX series Wi-Fi 6 access point for hazardous outdoor sites like oil fields and mines, with directional antennas. It is IP66/IP67 rated, works from -40 to 131 °F and offers 2x2 MIMO, Bluetooth 5.0 and Zigbee over Gigabit PoE.
Key Features
- Wi-Fi 6 dual band, 2x2 MIMO
- Hazardous location design
- Directional antennas, 6.8 dBi
- IP66/IP67, -40 to 131 °F
- Bluetooth 5.0 and Zigbee
- Gigabit RJ-45, PoE
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-567EX (ID)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Network Standard: IPSec
Encryption: SSL, WPA2-MPSK, WPA3, WPA3-Enhanced Open
Data Transfer Rate: 1.2 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: BSSIDs per radio: 16, OFDMA units: 16, Wireless clients per Wi-Fi radio: 256
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.0, ZigBee
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Aggregate data rate: 1.49 Gbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps
IoT Communications Technology: Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 6.8 DBi
Directivity: Directional
Operating System Required: ArubaOS, InstantOS
Features: 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), Auto-uplink (auto MDI/MDI-X), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Deep Packet Inspection (DPI), DFS support, Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Energy-Efficient Ethernet (EEE), Hardened, High Efficiency (HE) support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), Layer 7 Deep Packet Inspection (DPI), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Passpoint Release 2, Policy Enforcement Firewall (PEF), Reset button, Space Time Blocking Code (STBC), SU-MIMO technology, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support, Virtual Mobility Controller mode, Waterproof, Wi-Fi 6 technology, Zero-touch provisioning (ZTP)
Edition: Hazardous Location
Connectivity
Interface Provided: 1 x 1000Base-T (PoE+) - RJ-45, 1 x console - USB-C
Power Over Ethernet (PoE): PoE Class 3
Power
Power Consumption Operational: 15.6 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Radio, Status, System
Dimensions and Weight
Height: 4.3 inch
Width: 6.5 inch
Depth: 6.5 inch
Weight: 2.4 lbs
Certifications and Listing
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, FCC, IEC/EN/UL 60950, IP66, IP67, ISED, LVD 2014/35/EU, RED 2014/53/EU
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
