Product Information

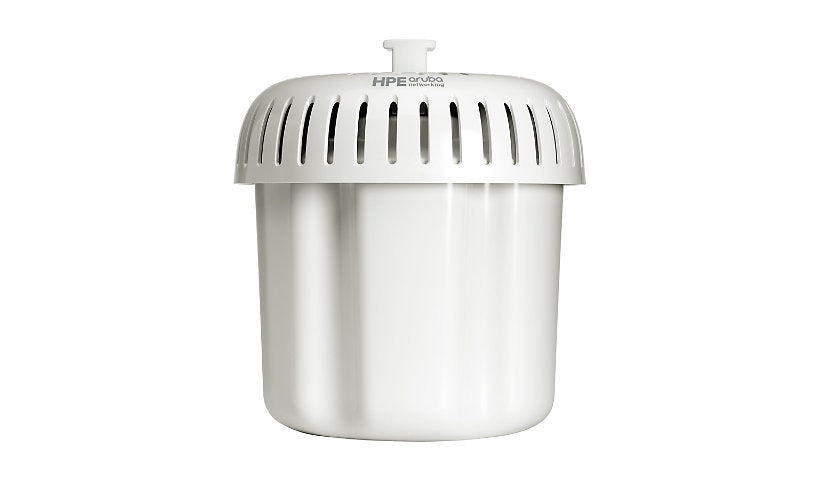

The HPE Aruba AP-575 (R4H18A) is a 570 series outdoor Wi-Fi 6 access point with omnidirectional antennas for parking lots, stadiums and public venues. It works from -40 to 149 °F and offers 2x2 MIMO, Bluetooth 5.0, Zigbee, a Gigabit port and USB. A mounting bracket is included.
Key Features
- Wi-Fi 6 dual band, 2x2 MIMO
- Omnidirectional antennas
- Gigabit RJ-45, PoE
- Outdoor, -40 to 149 °F
- Bluetooth 5.0 and Zigbee, USB
- Mounting bracket included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-575 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: SSL, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: BSSIDs per radio: 16, OFDMA units: 16, Wireless clients per Wi-Fi radio: 512
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Aggregate throughput: 3 Gbps, Maximum data rate (2.4 GHz): 575 Mbps, Maximum data rate (5 GHz): 4.8 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 2
Antenna Form Factor: Internal
Antenna Gain Level: 4.6 DBi
Directivity: Omni-directional
Operating System Required: ArubaOS, InstantOS
Features: 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), Auto-uplink (auto MDI/MDI-X), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Deep Packet Inspection (DPI), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Energy-Efficient Ethernet (EEE), High-Throughput (HT) support, Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Reset button, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x console - USB-C, 1 x USB 2.0 - Type A, 2 x antenna
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Status, System
Dimensions and Weight
Height: 10.6 inch
Width: 9.1 inch
Depth: 9.4 inch
Weight: 5.29 lbs
Included Items
Included Accessories: Mounting bracket
Certifications and Listing
Compliant Standards: CB, CE/EMC, cTUVus, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 60601-1-1, EN 60601-1-2, FCC, IEC/EN/UL 60950, ISED, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
