Product Information

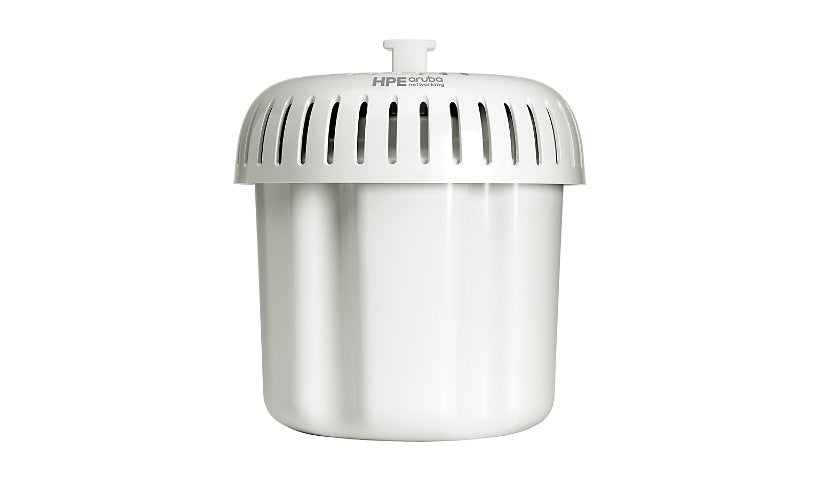

The HPE Aruba AP-575 (R4H33A) is a TAA compliant 570 series outdoor Wi-Fi 6 access point for parking lots, stadiums and public venues, rated -40 to 149 °F. It has 4x4:4 MU-MIMO with omnidirectional antennas, a 2.5G PoE port, a Gigabit port, BLE and Zigbee, and draws about 25.6 W.
Key Features
- Wi-Fi 6 dual band, 4x4:4
- Up to 3 Gbps (per spec)
- 2.5G PoE + 1G RJ-45
- Outdoor, -40 to 149 °F
- Bluetooth and Zigbee
- TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-575 (US) TAA
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA2
Data Transfer Rate: 3 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, QPSK
Capacity: Wireless clients per Wi-Fi radio: 512
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 575 Mbps, Maximum data rate (5 GHz): 4.8 Gbps
IoT Communications Technology: Bluetooth, Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 4x4:4 MU-MIMO technology, Advanced Cellular Coexistence (ACC), Auto-uplink (auto MDI/MDI-X), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, Energy-Efficient Ethernet (EEE), HPE SmartRate, Intelligent Power Monitoring (IPM), IPSec Virtual Private Network (VPN), Layer 7 Deep Packet Inspection (DPI), Link Aggregation Control Protocol (LACP), Low Density Parity Check (LDPC), Passpoint Release 2, Policy Enforcement Firewall (PEF), Reset button, Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 2500Base-T (PoE) - RJ-45, 1 x console - USB-C
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 25.6 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 10.6 inch
Width: 9.1 inch
Depth: 9.4 inch
Weight: 5.29 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Compliant Standards: CB, cTUVus, EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, EN 60950, IEC 60950, ISED, LVD 2014/35/EU, RED 2014/53/EU, UL 2043, UL 60950
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
