Product Information

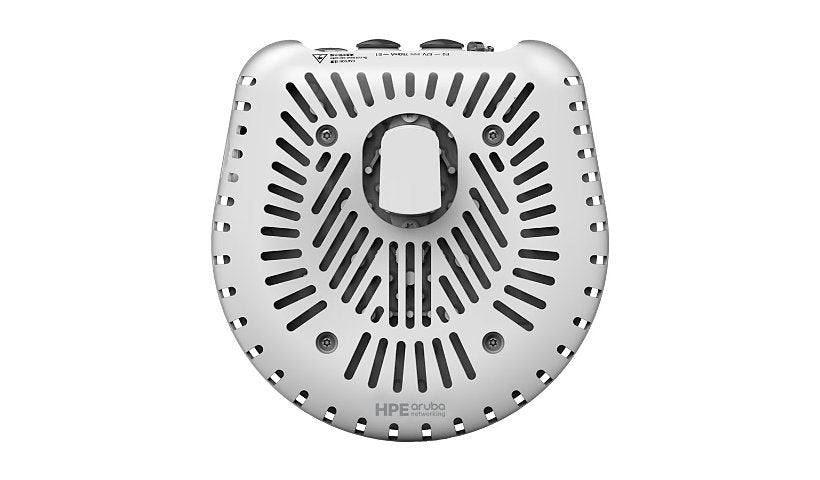

The HPE Aruba AP-575EX (R4W34A, US model) is a 570EX series outdoor Wi-Fi 6 access point for hazardous locations such as oil and gas sites and mines, meeting Class 1 Division 2 and ATEX Zone 2 needs. It offers 4x4 MU-MIMO, a Gigabit and a Smart Rate port, a USB-C console, Bluetooth 5.0 and Zigbee, IP66 and IP67 sealing and a -40 to 149 °F range.
Key Features
- Hazardous location rated
- Outdoor Wi-Fi 6, 4x4 MU-MIMO
- 1G + Smart Rate ports
- BLE 5.0, Zigbee
- IP66 / IP67
- -40 to 149 °F
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-575EX (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA2-MPSK, WPA3-Enhanced Open
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDMA, QPSK
Capacity: Wireless clients per Wi-Fi radio: 512
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.0, ZigBee
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDMA
IoT Communications Technology: Bluetooth, Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 2
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 4x4 MU-MIMO technology, Advanced Cellular Coexistence (ACC), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Direct Sequence Spread Spectrum (DSSS), Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Remote VPN tunnel mode, Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM)
Edition: Hazardous Location
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x console - USB-C, 1 x HPE Smart Rate - RJ-45
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Status, System
Dimensions and Weight
Height: 10.6 inch
Width: 9.4 inch
Depth: 9.4 inch
Weight: 5.51 lbs
Certifications and Listing
Compliant Standards: CE/EMC, EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, ETSI 300 019-2-4, FCC, HAZLOC, IEC/EN/UL 60950, IP66, IP67, ISED, RED 2014/53/EU
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3bz, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
