Product Information

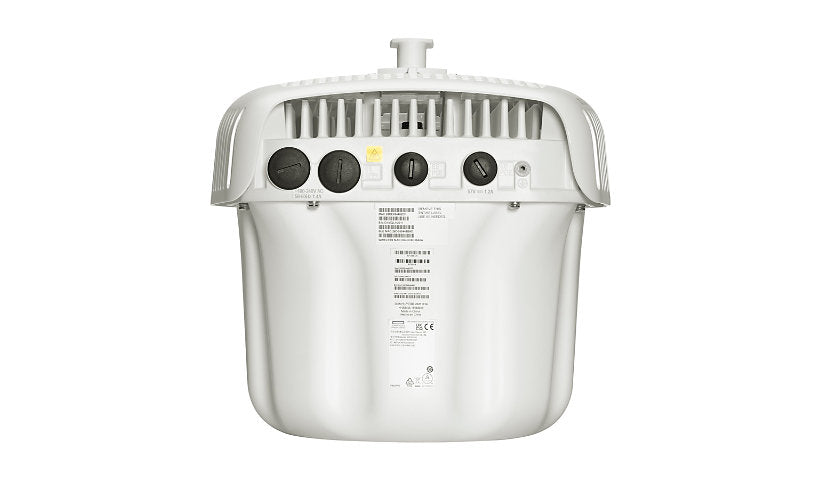

The HPE Aruba AP-585 (R7T04A) is a 580 series outdoor Wi-Fi 6 access point with integrated omnidirectional antennas for large enterprise and industrial sites. It offers 4x4:4 MU-MIMO, 5G, SFP+ and Gigabit ports, Bluetooth 5.0 and Zigbee, IP66/IP67 rating and PoE Class 6 or AC power.
Key Features
- Wi-Fi 6 dual band, 4x4:4
- Up to 2.4 Gbps
- Omnidirectional antennas
- 5G RJ-45 + SFP+ + Gigabit ports
- IP66/IP67, -40 to 149 °F
- PoE Class 6 or AC power
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-585 (US) Unified
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA2-MPSK, WPA3, WPA3-Enhanced Open
Data Transfer Rate: 2.4 GBps
Line Coding Format: OFDM, OFDMA
Capacity: Associated client devices per radio: 1024
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS
Network Device: Aggregate data rate: 2.97 Gbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 4
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS, InstantOS
Features: 4x4:4 MU-MIMO technology, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), Layer 7 Deep Packet Inspection (DPI), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Passpoint Release 2, Policy Enforcement Firewall (PEF), Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE), 1 x 10GBASE-SR - SFP+, 1 x 5GBase-T - RJ-45, 1 x console - USB-C
Power Over Ethernet (PoE): PoE Class 6
Power
Required Voltage: AC 110/240 volt
Power Consumption Operational: 71 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 12.6 inch
Width: 12.8 inch
Depth: 12.3 inch
Weight: 11.55 lbs
Certifications and Listing
Compliant Standards: EMC 2014/30/EU, EN 50155, EN 60601-1-2, EN 60950-1, EN 62368-1, FCC, IEC 60601-1-2, IEC 60950-1, IEC 60950-22, IEC 62368-1, IP66, IP67, ISED, LVD 2014/35/EU, RED 2014/53/EU, SIG, UL 60950-1, UL 62368-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
