Product Information

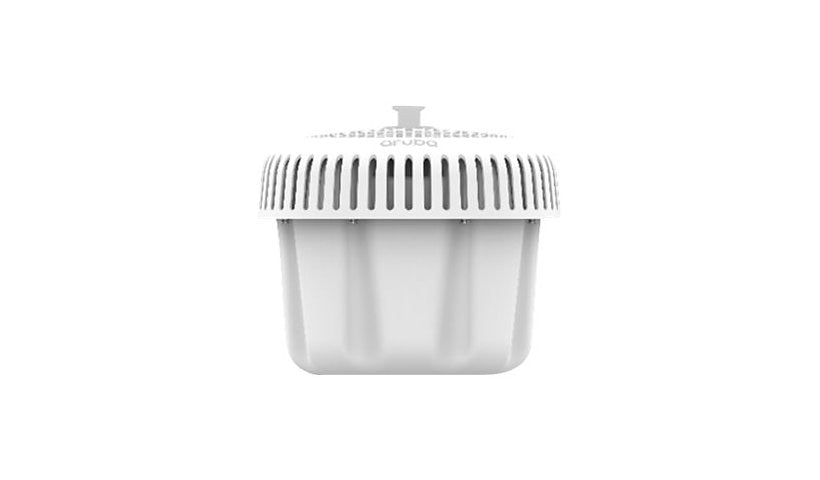

The HPE Aruba AP-585EX (R7T29A) is a 580EX series Wi-Fi 6 access point built for hazardous locations such as oil rigs and industrial plants. It is IP66/IP67 rated, works from -40 to 149 °F and offers 4x4:4 MU-MIMO up to 2.4 Gbps, Bluetooth 5.0, Zigbee, 5G and SFP+ uplinks. It is TAA compliant.
Key Features
- Wi-Fi 6 dual band, 4x4:4
- Up to 2.4 Gbps
- Hazardous location rated, IP66/IP67
- 5G RJ-45 + SFP+ + Gigabit ports
- Bluetooth 5.0 and Zigbee
- AC 110/240 V or PoE Class 6
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-585EX (US) Unified
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec
Encryption: SSL, WPA2, WPA2-MPSK, WPA3, WPA3-Enhanced Open
Data Transfer Rate: 2.4 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: Associated client devices per radio: 1024, BSSIDs per radio: 16, OFDMA units: 37
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Aggregate data rate: 2.97 Gbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 4
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS, InstantOS
Features: 4x4:4 MU-MIMO technology, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Deep Packet Inspection (DPI), DFS support, Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Energy-Efficient Ethernet (EEE), High Efficiency (HE) support, High-Throughput (HT) support, HPE SmartRate, IPSec Virtual Private Network (VPN), Jumbo Frames support (up to 9216 bytes), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Policy Enforcement Firewall (PEF), Reset button, Space Time Blocking Code (STBC), SU-MIMO technology, Target Wait Time (TWT), Temperature hardened, Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support, Weatherproof
Connectivity
Interface Provided: 1 x 1000Base-T (PoE), 1 x 10GBASE-SR - SFP+, 1 x 5GBase-T - RJ-45, 1 x console - USB-C
Power Over Ethernet (PoE): PoE Class 6
Power
Required Voltage: AC 110/240 volt
Power Consumption Operational: 71 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 93% (non-condensing)
MTBF: 95 Year
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Radio, Status, System
Dimensions and Weight
Height: 12.6 inch
Width: 12.8 inch
Depth: 12.3 inch
Weight: 11.55 lbs
Certifications and Listing
Compliant Standards: ASTM B117, EMC 2014/30/EU, EN 50155, EN 60601-1-2, EN 60950-1, EN 62368-1, FCC, HAZLOC, IEC 60601-1-2, IEC 60950-1, IEC 60950-22, IEC 62368-1, IP66, IP67, ISED, LVD 2014/35/EU, RED 2014/53/EU, SIG, UL 60950-1, UL 62368-1
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
