Product Information

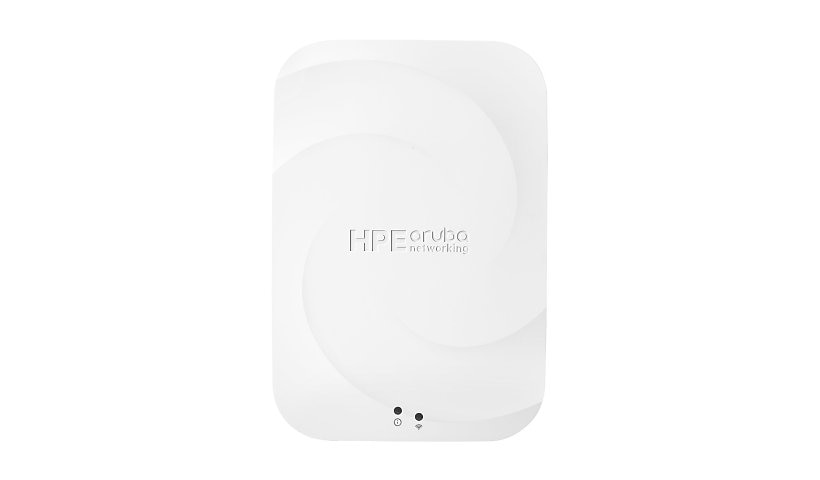

This HPE Aruba AP-605H (S1F96A) pack holds ten 600H series hospitality Wi-Fi 6E access points. Each offers tri-band coverage up to 3.6 Gbps, a 2.5G uplink, four Gigabit local ports (two with PoE+ out), USB, Bluetooth 5.0 and Zigbee. Power adapters are not included.
Key Features
- Pack of 10 access points
- Wi-Fi 6E tri-band, up to 3.6 Gbps
- 2.5G uplink port
- 4 x Gigabit ports, 2 with PoE+ out
- Bluetooth 5.0, Zigbee, USB
- Power adapter not included
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-605H (US10) Hospitality
Product Type: Wireless access point
Packaged Quantity: 10
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE), WPA, WPA2, WPA3-Enterprise
Data Transfer Rate: 3.6 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, QPSK
Capacity: Associated client devices per radio: 512, BSSIDs per radio: 16
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 287 Mbps, Maximum data rate (5 GHz + 6 GHz bands): 3.6 Gbps, Maximum data rate (5 GHz): 1.2 Gbps, Maximum data rate (6 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 2
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS 10.7.0.0, ArubaOS 8.12.0.0, InstantOS 8.12.0.0
Features: 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), Auto-uplink (auto MDI/MDI-X), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), Network Access Control (NAC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, PoE Class 3, PoE Class 4, PoE Class 6, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), Target Wake Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 100/1000/2500Base-T - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 - Type A, 2 x 10/100/1000Base-T - RJ-45, 2 x 10/100/1000Base-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 114 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Power, Status
Dimensions and Weight
Height: 6 inch
Width: 4.1 inch
Depth: 1.6 inch
Weight: 17.64 ounce
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, ETS 300 019 Class 2.3, ETS 300 019 Class 3.2, FCC, IEC/EN 62368-1, ISED, LVD 2014/35/EU, RED 2014/53/EU, UL 2043
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
