Product Information

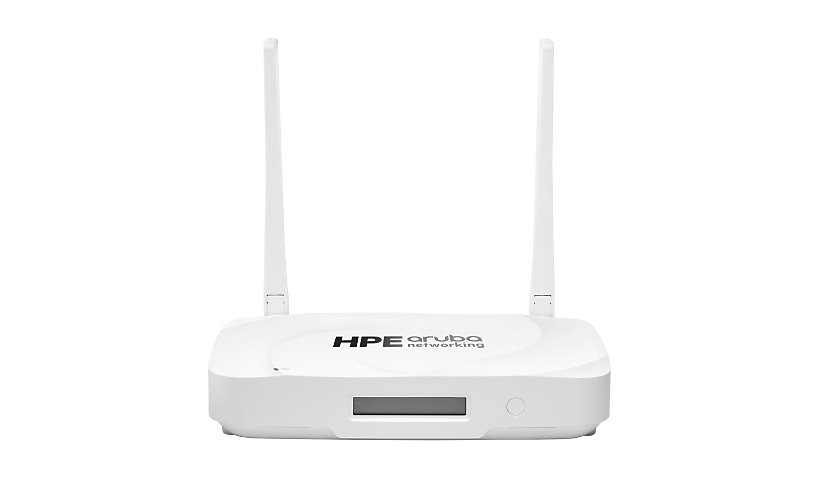

The HPE Aruba AP-605R12 (US), part R8N20A, is a Wi-Fi 6E remote access point with two radios covering three bands bundled with the AP-605CM12 LTE Cat 12 cellular module for backup connectivity. It reaches up to 3.6 Gbps combined peak data rate across 2.4, 5 and 6 GHz and includes Bluetooth 5.0 and Zigbee radios for IoT. A 2.5GbE PoE+ uplink, a Gigabit port and three PoE output ports make it a small branch or home office hub. AC power adapter included.
Key Features
- Wi-Fi 6E (802.11ax), 2.4/5/6 GHz, up to 3.6 Gbps combined
- AP-605CM12 LTE Cat 12 cellular module included
- Bluetooth 5.0 and Zigbee
- 1 x 2.5GBASE-T PoE+ uplink, 1 x Gigabit, 3 x Gigabit PoE out (15.4 W)
- WPA3, TPM
- Desktop, AC power adapter included
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-605R12 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, LTE, ZigBee
Encryption: WPA, WPA2, WPA3-Enhanced Open
Data Transfer Rate: 3.6 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, QPSK
Capacity: Associated client devices per radio: 512, BSSIDs per radio: 16, OFDMA units: 8
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0, LTE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz + 6 GHz bands): 3.6 Gbps, Maximum data rate (5 GHz): 1.2 Gbps, Maximum data rate (6 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), LTE Cat 12, Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 2
Antenna Form Factor: External
Directivity: Omni-directional
Operating System Required: ArubaOS, InstantOS 10.5.0.0
Features: 2x2 MIMO technology, 2x2:2 streams, Advanced Cellular Coexistence (ACC), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, High Efficiency (HE) support, High-Throughput (HT) support, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, PoE Class 3, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 2.5 GBase-T (PoE+) - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 - Type A, 3 x 1000Base-T (PoE) - RJ-45 - 15.4 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 80 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Desktop
Status Indicators: Power, Status, System
Dimensions and Weight
Height: 1.6 inch
Width: 8.9 inch
Depth: 5.9 inch
Weight: 31.74 ounce
Included Items
Cables: 1 x power cable (NA)
Bundled With: HPE Aruba AP-605CM12 LTE cellular module
Certifications and Listing
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, ETS 300 019 Class 3.2, FCC, IEC/EN 62368-1, IEC/EN/UL 60950, ISED, LVD 2014/35/EU, RED 2014/53/EU
Compliant Standards: IEEE 802.11b, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
