Product Information

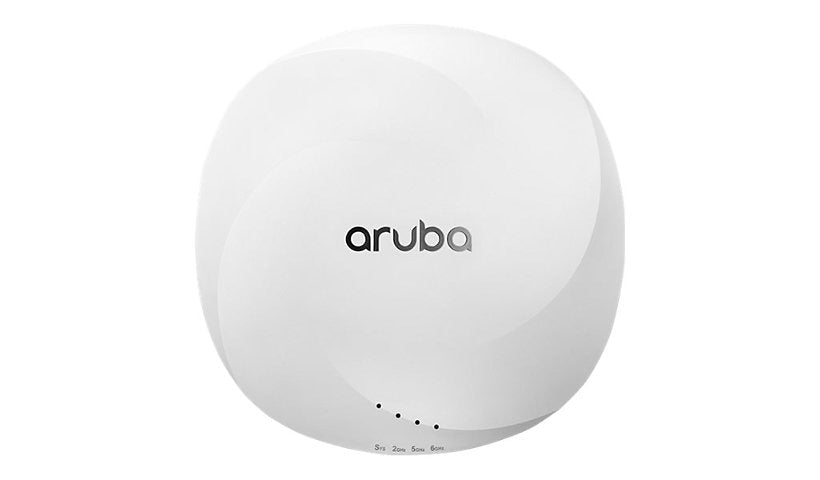

The HPE Aruba AP-615 (R7J55A) is a TAA compliant 610 series campus Wi-Fi 6E access point for universities and office complexes. It covers 2.4, 5 and 6 GHz with 2x2:2 streams up to 3.6 Gbps, adds Zigbee and BLE, and has a 2.5G PoE port and USB. A mounting bracket is included.
Key Features
- Wi-Fi 6E tri-band, up to 3.6 Gbps
- 2x2:2 streams
- 2.5G RJ-45 (PoE), USB
- Zigbee and BLE
- About 20.9 W
- TAA compliant
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-615 (US) TAA
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: Opportunistic Wireless Encryption (OWE), WPA, WPA-Enterprise, WPA2, WPA2-MPSK, WPA3
Data Transfer Rate: 3.6 GBps
Line Coding Format: OFDM, OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), 802.15.4, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS
Network Device: Maximum data rate (2.4 GHz): 287 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Maximum data rate (6 GHz): 2.4 Gbps, Peak data rate: 3.6 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 7 DBi
Directivity: Omni-directional
Features: 2x2:2 streams, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Passpoint Release 2, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Tri-Band, Trusted Platform Module (TPM), Very High Throughput (VHT) support, Wi-Fi Multimedia (WMM) support, WMM Power Save
Edition: Campus
Connectivity
Interface Provided: 1 x 2.5 GBase-T (PoE) - RJ-45, 1 x micro-USB - Type B, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 20.9 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 62 Year
Ruggedized Design: Indoor
Physical Characteristics
Status Indicators: Radio, Status, System
Built-in Devices: Beidou, Galileo, GLONASS, GPS
Dimensions and Weight
Height: 1.5 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 18.34 ounce
Included Items
Included Accessories: Mounting bracket
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, Wi-Fi CERTIFIED 6E
Compliant Standards: Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 60601-1-1, EN 60601-1-2, EN 60950, FCC, IEC 60950, IEC/EN 62368-1, IEC/EN/UL 60950, IEEE 802.11mc, ISED, SAE, SIG, UL 2043, UL 60950, WPA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
