Product Information

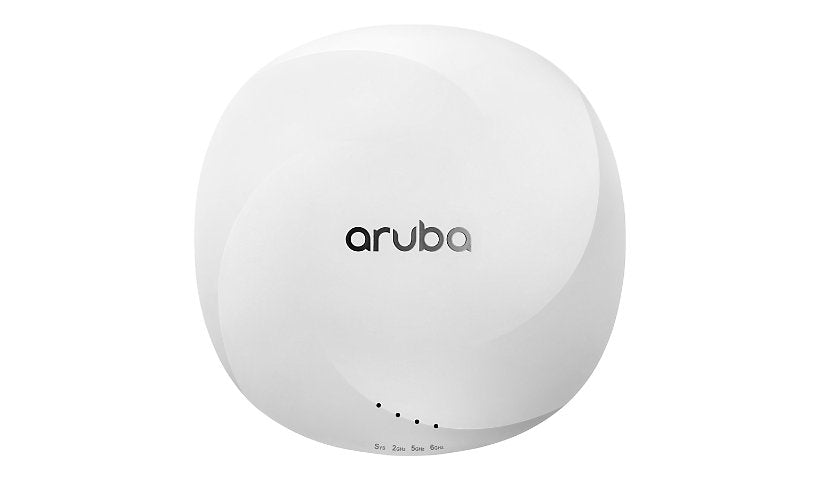

This HPE Aruba AP-615 (S3J34A) pack includes ten 610 series campus Wi-Fi 6E access points. Each covers 2.4, 5 and 6 GHz with 2x2:2 streams up to 3.6 Gbps, adds Bluetooth 5.0 LE and Zigbee, and has two 2.5G PoE ports and USB.
Key Features
- Pack of 10 access points
- Wi-Fi 6E tri-band, up to 3.6 Gbps
- 2x2:2 streams
- 2 x 2.5G RJ-45 (PoE)
- Bluetooth 5.0 LE and Zigbee
- USB 2.0
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-615 (US10)
Product Type: Wireless access point
Packaged Quantity: 10
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: Opportunistic Wireless Encryption (OWE), WPA, WPA-Enterprise, WPA2, WPA2-MPSK, WPA3
Data Transfer Rate: 3.6 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, OFDM, OFDMA, QPSK
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS
Network Device: Combined peak data rate: 3.6 Gbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Maximum data rate (6 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2:2 streams, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Passpoint Release 2, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Tri-Band, Trusted Platform Module (TPM), Very High Throughput (VHT) support, Wi-Fi Multimedia (WMM) support, WMM Power Save
Edition: Campus
Connectivity
Interface Provided: 1 x micro-USB - Type B, 1 x USB 2.0 - Type A, 2 x 2.5 GBase-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 62 Year
Ruggedized Design: Indoor
Physical Characteristics
Status Indicators: Radio, Status, System
Built-in Devices: Beidou, Galileo, GLONASS, GPS
Dimensions and Weight
Height: 1.5 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 18.34 ounce
Certifications and Listing
Compliant Standards: Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 60601-1-1, EN 60601-1-2, EN 60950, ETS 300 019 Class 1.2, ETS 300 019 Class 3.2, FCC, IEC 60950, IEC/EN 62368-1, IEC/EN/UL 60950, IEEE 802.11mc, ISED, LVD 2014/35/EU, SAE, SIG, UL 2043, UL 60950, WPA
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, Wi-Fi CERTIFIED 6E
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
