Product Information

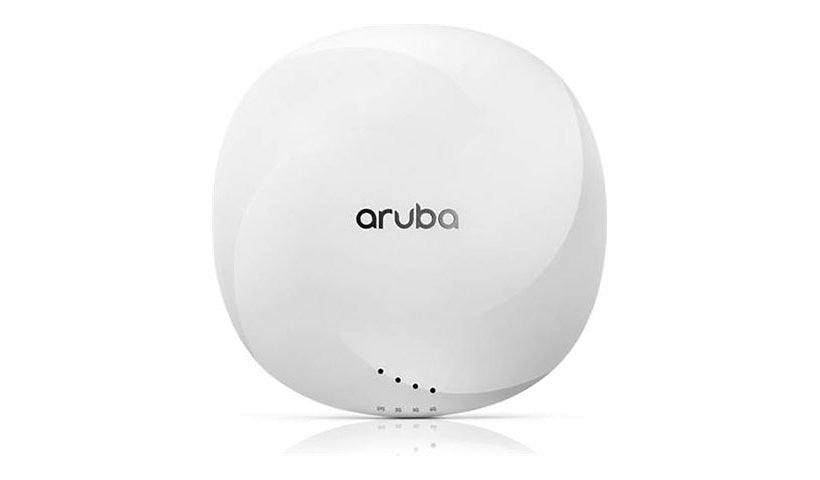

The HPE Aruba AP-634 (S1G49A) is the rest of world 630 series campus Wi-Fi 6E access point with three 2x2:2 radios for 2.4, 5 and 6 GHz, up to 3.9 Gbps. It has two 2.5G ports, USB, Bluetooth 5.0 and Zigbee, and mounts on a wall or ceiling.
Key Features
- Wi-Fi 6E tri-band, 2x2:2
- Up to 3.9 Gbps
- 2 x 100M/1G/2.5G RJ-45
- Bluetooth 5.0 and Zigbee, USB
- RW version
- Wall or ceiling mount
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-634 (RW)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE), WPA, WPA2, WPA3-Enterprise
Data Transfer Rate: 3.9 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK
Capacity: BSSIDs per radio: 16, OFDMA units: 8, Wireless clients per Wi-Fi radio: 512
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Aggregate data rate: 3.9 Gbps, Maximum data rate (2.4 GHz): 287 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Maximum data rate (6 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External
Antenna Gain Level: 7 DBi
Directivity: Omni-directional
Operating System Required: ArubaOS, InstantOS
Features: 2x2:2 MU-MIMO technology, Advanced Cellular Coexistence (ACC), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), High Efficiency (HE) support, High-Throughput (HT) support, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Orthogonal Frequency Division Multiple Access (OFDMA), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Passpoint Release 2, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beamforming, Trusted Platform Module (TPM), Very High Throughput (VHT) support
Edition: Campus
Connectivity
Interface Provided: 1 x console - micro-USB, 1 x USB 2.0 - Type A, 2 x 100/1000/2500Base-T - RJ-45
Power Over Ethernet (PoE): PoE
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95%
MTBF: 59 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Radio, System
Dimensions and Weight
Height: 2 inch
Width: 8.7 inch
Depth: 8.7 inch
Weight: 2.87 lbs
Certifications and Listing
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, EN 60950, EN 62368-1, FCC, IEC 60950, IEC 62368-1, ISED, LVD 2014/35/EU, RED 2014/53/EU, UL 60950
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
