Product Information

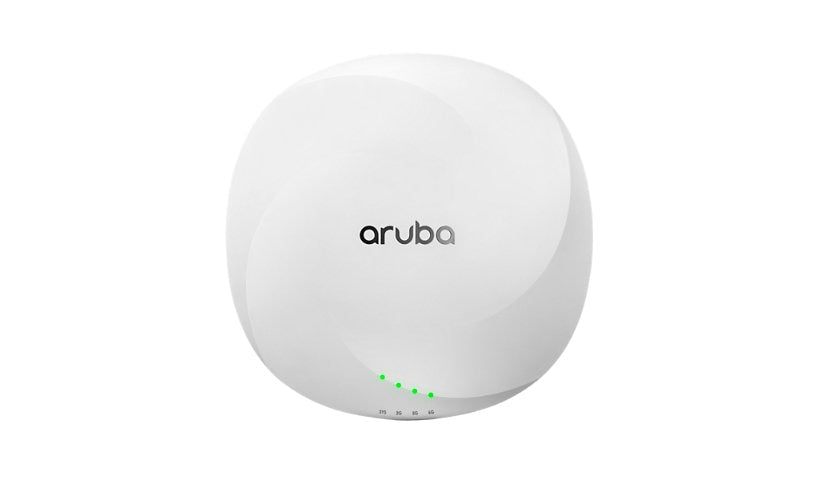

This HPE Aruba AP-635 (S3J36A) pack holds five 630 series campus Wi-Fi 6E access points. Each covers 2.4, 5 and 6 GHz with 160 MHz channels up to 3.9 Gbps, has two 2.5G ports, USB, Bluetooth 5.0 LE and Zigbee, and runs on PoE Class 5. Mounting brackets are included.
Key Features
- Pack of 5 access points
- Wi-Fi 6E tri-band, up to 3.9 Gbps
- 2 x 2.5G RJ-45
- Bluetooth 5.0 LE and Zigbee, USB
- PoE Class 5
- Ceiling mount brackets
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-635 (US)
Product Type: Wireless access point
Packaged Quantity: 5
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA, WPA2, WPA3
Data Transfer Rate: 3.9 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 512, BSSIDs per radio: 16, OFDMA units: 8, Spatial streams: 2
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Maximum data rate (6 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS 8.12.0.0, InstantOS 8.9.0.0
Features: 160MHz bandwidth support, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), Automatic thermal shutdown, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), HPE SmartRate, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Reset button, Security lock slot (cable lock sold separately), Space Time Blocking Code (STBC), Target Wait Time (TWT), Trusted Platform Module (TPM), Very High Throughput (VHT) support
Edition: Campus
Connectivity
Interface Provided: 1 x console - micro-USB, 1 x USB 2.0 (host) - Type A, 2 x 2.5 GBase-T
Power Over Ethernet (PoE): PoE Class 5
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 520,000 Hours
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Ceiling Mountable
Status Indicators: Radio, Status, System
Dimensions and Weight
Height: 2 inch
Width: 8.7 inch
Depth: 8.7 inch
Weight: 2.87 lbs
Included Items
Included Accessories: Mounting bracket
Certifications and Listing
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN60601-1-2, FCC, IEC/EN 62368-1, IEC/EN/UL 60950, ISED, LVD 2014/35/EU, RED 2014/53/EU, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
