Product Information

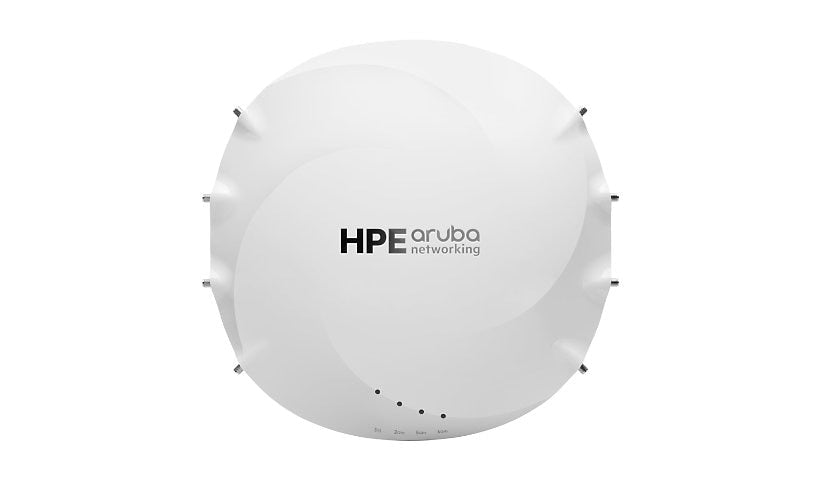

The HPE Aruba AP-654 (S1G54A) is a flagship 650 series campus Wi-Fi 6E access point with 4x4:4 streams across three bands for up to 7.8 Gbps. It has two 5G PoE ports, USB, Zigbee and 802.15.4 IoT radios and a TPM.
Key Features
- Wi-Fi 6E tri-band, 4x4:4
- Up to 7.8 Gbps
- 2 x 5G RJ-45 (PoE)
- Zigbee and 802.15.4 IoT
- USB 2.0, TPM
- Campus edition
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: AP-654 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA2-MPSK, WPA3
Data Transfer Rate: 7.8 GBps
Line Coding Format: OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), 802.15.4, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 2.4 Gbps, Maximum data rate (6 GHz): 4.8 Gpps, Peak data rate: 7.8 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 7 DBi
Directivity: Omni-directional
Features: 4x4:4 streams, Advanced IoT Coexistence (AIC), Trusted Platform Module (TPM), Wi-Fi Multimedia (WMM) support
Edition: Campus
Connectivity
Interface Provided: 1 x micro-USB - Type B, 1 x USB 2.0 - Type A, 2 x 5GBase-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 59 Year
Ruggedized Design: Indoor
Dimensions and Weight
Height: 2.2 inch
Width: 10.2 inch
Depth: 10.2 inch
Weight: 3.97 lbs
Certifications and Listing
Compliant Standards: Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 60601-1-1, EN 60601-1-2, EN 60950, FCC, IEC 60950, IEC/EN 62368-1, IEC/EN/UL 60950, IEEE 802.11mc, ISED, SAE, SIG, UL 2043, UL 60950, WPA
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi CERTIFIED
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
