Product Information

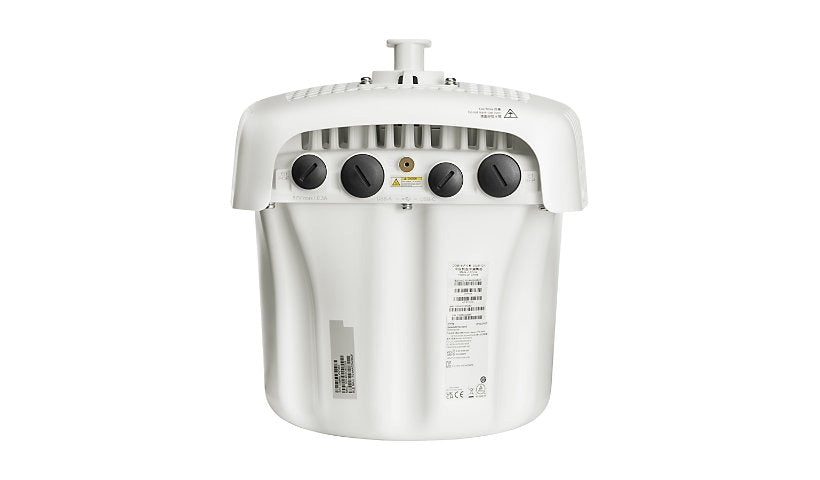

The HPE Aruba Networking AP-675 (S0P50A) is a 670 series outdoor Wi-Fi 6E access point with omnidirectional antennas for tri-band coverage in tough outdoor locations. It delivers up to 3.9 Gbps, includes Bluetooth 5.0 LE and Zigbee, and runs from -40 to 158 °F on PoE Class 6.
Key Features
- Wi-Fi 6E tri-band: 2.4, 5, 6 GHz
- Up to 3.9 Gbps, 160 MHz
- Omnidirectional antennas
- Bluetooth 5.0 LE and Zigbee
- 2.5G RJ-45 and SFP+ uplinks
- Outdoor, -40 to 158 °F
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-675 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA2-MPSK, WPA3, WPA3-Enhanced Open
Data Transfer Rate: 3.9 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 512, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 2
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 287 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Maximum data rate (6 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS 8.12.0.0, InstantOS 8.12.0.0
Features: 160MHz bandwidth support, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), ClientMatch, Cyclic Delay Diversity (CDD), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Reset button, Space Time Blocking Code (STBC), Surge protection, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support, Zero-touch provisioning (ZTP)
Connectivity
Interface Provided: 1 x 1000Base-SR - SFP+, 1 x 2.5 GBase-T, 1 x console - USB-C
Power Over Ethernet (PoE): PoE Class 6
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 100% (non-condensing)
MTBF: 500,562 Hours
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Radio, Status, System
Dimensions and Weight
Height: 12.3 inch
Width: 11.4 inch
Depth: 11.3 inch
Weight: 8.82 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Compliant Standards: ASTM B117-07A, ATEX Zone 2, Class 1 Div 2 (C1D2), EN 60601-1-1, EN 62368-1, EN60601-1-2, FCC, GR-487, IEC 62368-1, IP66, IP67, ISED, RED 2014/53/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
