Product Information

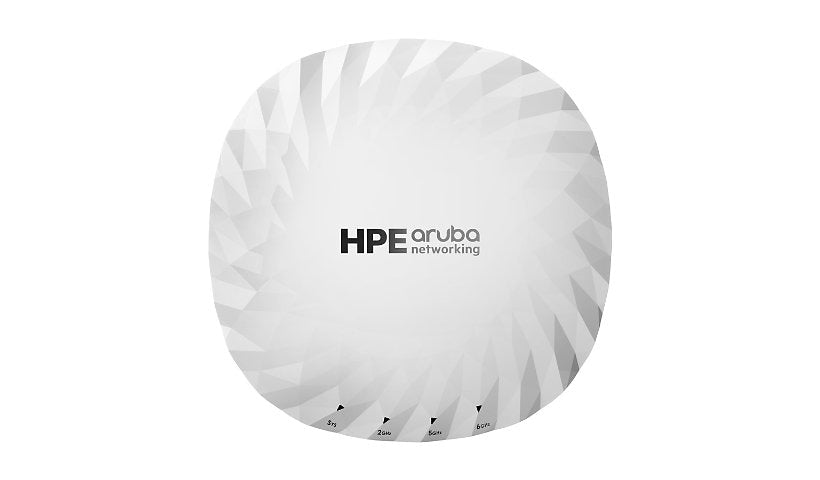

This is a pack of 10 HPE Aruba AP-725 (S4A26A, US model) campus access points. Each is a ceiling mount Wi-Fi 7 unit with 2x2:2 streams on 2.4, 5 and 6 GHz, a 2.5G PoE port, USB, Bluetooth 5.4 LE and Zigbee, plus TPM 2.0 and secure boot.
Key Features
- Pack of 10 access points
- Wi-Fi 7 tri-band, 2x2:2
- 2.5G RJ-45, PoE powered
- Bluetooth 5.4 LE, Zigbee
- TPM 2.0, secure boot
- Ceiling mount
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-725 (US)
Product Type: Wireless access point
Packaged Quantity: 10
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA2, WPA2-MPSK, WPA3-Enterprise, WPA3-Personal
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 400, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 2
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 344 Mbps, Maximum data rate (5 GHz): 1.44 Gbps, Maximum data rate (6 GHz): 2.88 Gbps, Maximum tri-band aggregate data rate: 4.7 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS 10.7.2.0
Features: 2x2:2 streams, Advanced Cellular Coexistence (ACC), Secure Boot, Security slot (Kensington security lock compatible), Target Wait Time (TWT), Trusted Platform Module 2.0 (TPM 2.0)
Edition: Campus
Connectivity
Interface Provided: 1 x 2.5 GBase-T - RJ-45, 1 x USB 2.0 (host) - Type A, 2 x antenna
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 1,720,000 Hours
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Ceiling Mountable
Status Indicators: Radio, System
Dimensions and Weight
Height: 1.8 inch
Width: 7.9 inch
Depth: 7.9 inch
Weight: 32.1 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Compliant Standards: EN60601-1-2, FCC, IEC/EN 62368-1, ISED, LVD 2014/35/EU, UL 2043
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
