Product Information

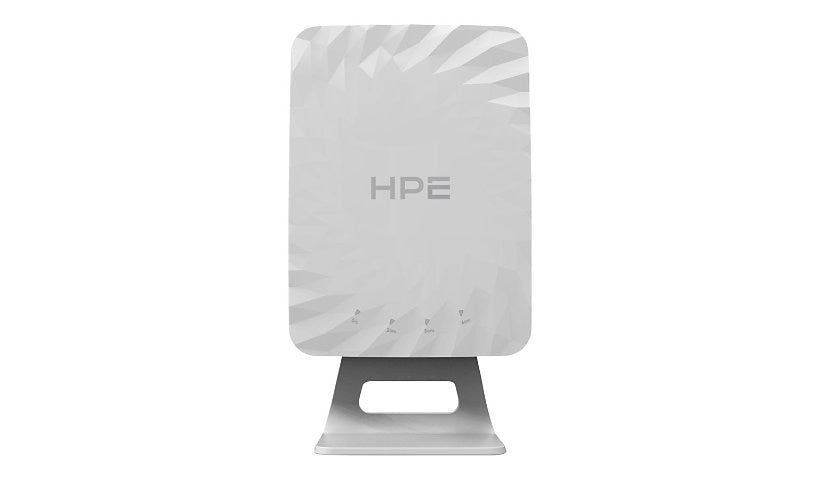

This HPE Aruba AP-725H (S6Q95A) pack holds ten 720H series hospitality Wi-Fi 7 access points. Each offers tri-band 2x2 MIMO up to 9.3 Gbps, a 5G uplink, four Gigabit local ports (two with PoE out), USB, Bluetooth 5.4 LE and Zigbee. Power adapters are not included.
Key Features
- Pack of 10 access points
- Wi-Fi 7 tri-band, up to 9.3 Gbps
- 5G PoE uplink
- 4 x Gigabit local ports, 2 with PoE out
- Bluetooth 5.4 LE, Zigbee, USB
- Power adapter not included
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-725H (US10)
Product Type: Wireless access point
Packaged Quantity: 10
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE), WPA2, WPA2-MPSK, WPA3-Enterprise
Data Transfer Rate: 9.3 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, OFDMA, QPSK
Capacity: Associated client devices per radio: 400, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 2
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 690 Mbps, Maximum data rate (5 GHz): 2.88 Gbps, Maximum data rate (6 GHz): 5.76 Gbps, Maximum tri-band aggregate data rate: 9.3 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 3.5 DBi
Directivity: Directional
Features: 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), Auto-uplink (auto MDI/MDI-X), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), MACsec support, Network Access Control (NAC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, PoE Class 6, Secure Boot, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), Target Wake Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module 2.0 (TPM 2.0)
Edition: Hospitality
Connectivity
Interface Provided: 1 x 5GBase-T (PoE) - RJ-45, 1 x console, 1 x USB 2.0 (host) - Type A, 2 x 10/100/1000Base-T - RJ-45, 2 x 10/100/1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 500,000 Hours
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Power, Radio, System
Dimensions and Weight
Height: 1.3 inch
Width: 5.1 inch
Depth: 7.1 inch
Weight: 16.61 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED
Compliant Standards: EEE, EN60601-1-2, ETS 300 019 Class 3.1, FCC, IEC/EN 62368-1, ISED, LVD 2014/35/EU, UL 2043
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
