Product Information

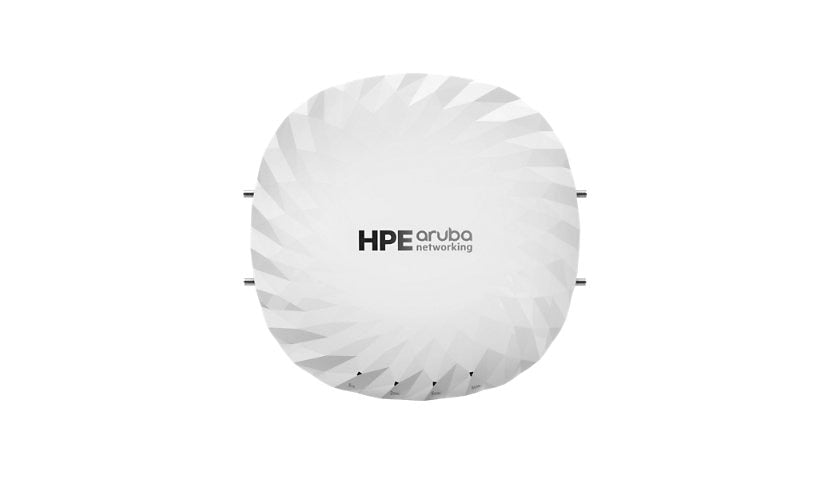

The HPE Aruba AP-734 (S1G33A, US model) is a 730 series campus Wi-Fi 7 access point with four RP-SMA connectors for external antennas. It has two 2.5G ports, two USB ports, a micro-USB console, Bluetooth 5.4 LE and Zigbee, and is powered by PoE Class 5.
Key Features
- Wi-Fi 7 tri-band, 2x2
- 4 x RP-SMA external antenna ports
- 2 x 2.5G RJ-45
- 2 x USB, micro-USB console
- BLE 5.4, Zigbee
- PoE Class 5
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-734 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA, WPA2, WPA2-MPSK, WPA3-Enhanced Open, WPA3-Enterprise
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 512, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 2
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 2.9 Gbps, Maximum data rate (6 GHz): 5.8 Gbps, Maximum tri-band aggregate data rate: 9.3 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External
Directivity: Omni-directional
Operating System Required: ArubaOS 10.7.0.0
Features: 160MHz bandwidth support, 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), Automatic thermal shutdown, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), HPE SmartRate, Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Multi-Link Operation (MLO), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support
Edition: Campus
Connectivity
Interface Provided: 1 x console - micro-USB, 2 x 2.5 GBase-T - RJ-45, 2 x USB 2.0 (host) - Type A, 4 x antenna - RP-SMA
Power Over Ethernet (PoE): PoE Class 5
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 635,000 Hours
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Ceiling Mountable
Status Indicators: Radio, Status, System
Built-in Devices: Barometric pressure sensor, GNSS receiver
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Compliant Standards: EMC 2014/30/EU, ETS 300 019 Class 2.3, ETS 300 019 Class 3.2, FCC, IEC/EN 62368-1, IEC/EN/UL 60950, ISED, LVD 2014/35/EU, RED 2014/53/EU, UL 2043
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
