Product Information

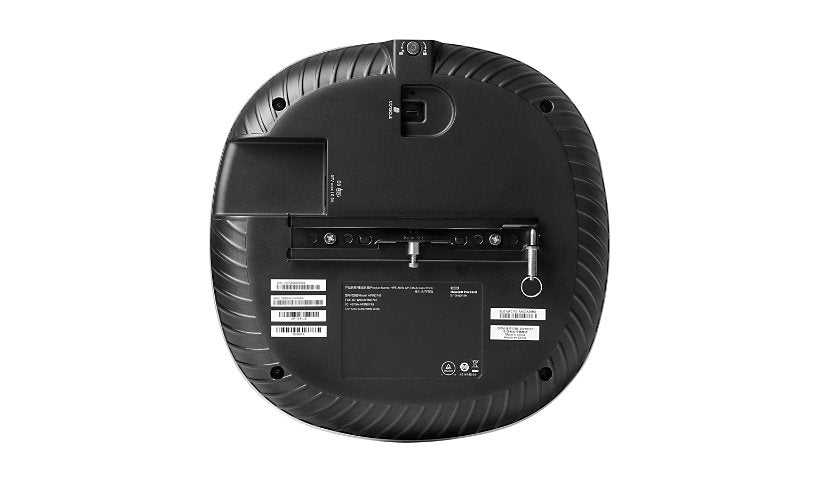

This is a pack of 5 HPE Aruba AP-745 (S5R02A, US model) campus access points. Each is a ceiling mount Wi-Fi 7 unit with 4x4 MIMO on 5 and 6 GHz and 2x2 on 2.4 GHz, a 5G port, USB, a micro-USB console, Bluetooth 5.4 LE and Zigbee, powered by PoE Class 6.
Key Features
- Pack of 5 access points
- Wi-Fi 7, 4x4 on 5 / 6 GHz
- 5G RJ-45, PoE Class 6
- BLE 5.4, Zigbee
- USB, micro-USB console
- AirMatch, ClientMatch
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-745 (US)
Product Type: Wireless access point
Compatibility Specs: P/N: JY728A, R6Q99A, R8L34A, S1H25A
Packaged Quantity: 5
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: Opportunistic Wireless Encryption (OWE), WPA2, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 512, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 4
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 344 Mbps, Maximum data rate (5 GHz): 2.88 Gbps, Maximum data rate (6 GHz): 5.76 Gbps, Peak data rate: 8.9 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS 10.8.0.0
Features: 2x2 MIMO 2.4GHz, 2x2 SU-MIMO technology, 4x4 MIMO 5GHz, 4x4 MIMO 6GHz, 4x4 SU-MIMO technology, Advanced Cellular Coexistence (ACC), Aruba AirMatch, Auto-uplink (auto MDI/MDI-X), ClientMatch, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Energy-Efficient Ethernet (EEE), High Efficiency (HE) support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), LED off mode, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Wi-Fi Multimedia (WMM) support
Edition: Campus
Connectivity
Interface Provided: 1 x 100/1000/2500/5000Base-T - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 (host) - Type A
Power Over Ethernet (PoE): PoE Class 6
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 100% RH
MTBF: 964,054 Hours
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Ceiling Mountable
Status Indicators: 2.4 GHz, 5 GHz, 6 GHz, System
Dimensions and Weight
Height: 2.2 inch
Width: 9.4 inch
Depth: 9.4 inch
Weight: 2.87 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, Wi-Fi CERTIFIED 7
Compliant Standards: EN60601-1-2, ETS 300 019 Class 1.2, ETS 300 019 Class 2.3, FCC, IEC/EN/UL 62368-1, ISED, LVD 2014/35/EU, UL 2043
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
