Product Information

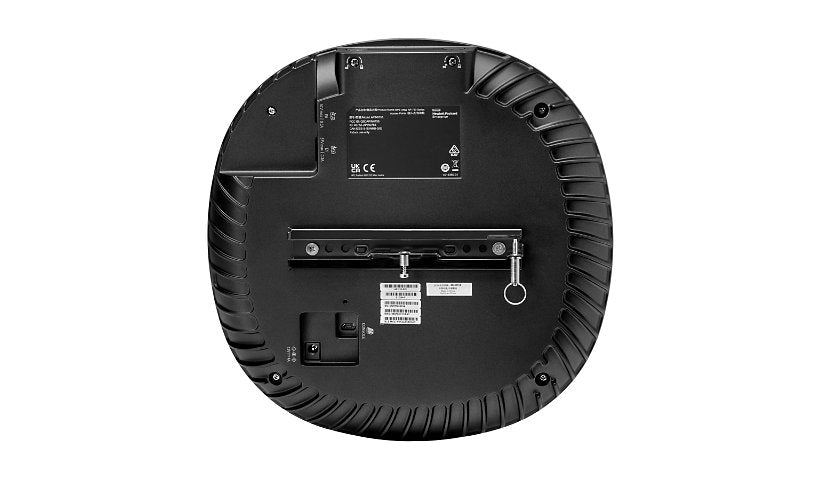

This HPE Aruba AP-755 (S0H11A) pack holds five flagship 750 series campus Wi-Fi 7 access points. Each has 4x4 MIMO, 160 MHz channels, two 2.5G Smart Rate ports, two USB ports, Bluetooth 5.4 LE and Zigbee, and runs on PoE Class 6.
Key Features
- Pack of 5 access points
- Wi-Fi 7 tri-band, 4x4 MIMO
- 2 x 2.5G RJ-45 (Smart Rate)
- Bluetooth 5.4 LE and Zigbee
- 2 x USB 2.0
- PoE Class 6
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-755 (US)
Product Type: Wireless access point
Packaged Quantity: 5
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA, WPA2, WPA2-MPSK, WPA3-Enhanced Open, WPA3-Enterprise
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 512, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 4
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 1.4 Gbps, Maximum data rate (5 GHz): 5.8 Gbps, Maximum data rate (6 GHz): 11.5 Gbps, Maximum tri-band aggregate data rate: 18.7 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS 10.7.0.0
Features: 160MHz bandwidth support, 4x4 MIMO technology, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), Automatic thermal shutdown, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), HPE SmartRate, Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Multi-Link Operation (MLO), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support
Edition: Campus
Connectivity
Interface Provided: 1 x console - micro-USB, 2 x 2.5 GBase-T - RJ-45, 2 x USB 2.0 (host) - Type A
Power Over Ethernet (PoE): PoE Class 6
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 569,000 Hours
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Ceiling Mountable
Status Indicators: Radio, Status, System
Built-in Devices: Barometric pressure sensor, GNSS receiver
Dimensions and Weight
Height: 2.2 inch
Width: 10.2 inch
Depth: 10.2 inch
Weight: 3.37 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Compliant Standards: EMC 2014/30/EU, EN 60601-1-1, EN60601-1-2, ETS 300 019 Class 2.3, ETS 300 019 Class 3.2, FCC, IEC/EN 62368-1, IEC/EN/UL 60950, ISED, LVD 2014/35/EU, RED 2014/53/EU, UL 2043
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
