Product Information

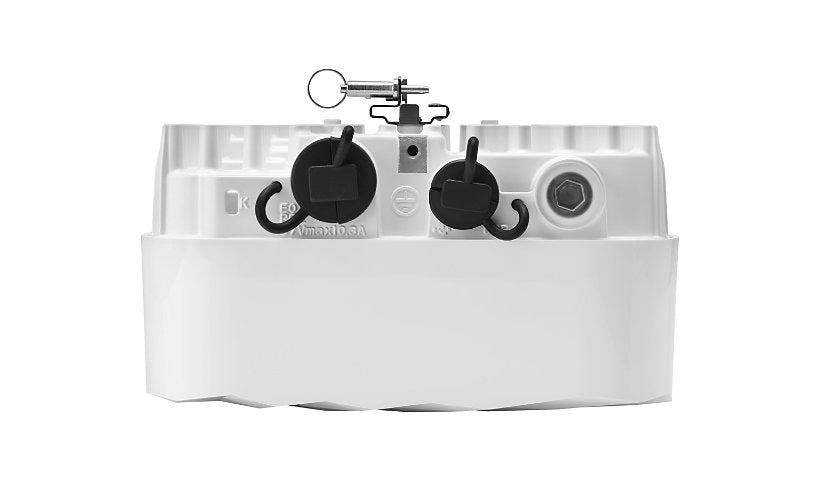

The HPE Aruba AP-763 (S4K09A) is a 760 series hardened Wi-Fi 7 access point with dynamic antennas for industrial sites and warehouses. It offers 4x4 MIMO on 6 GHz, Bluetooth 5.4 LE and Zigbee, a 5G port and USB, and works from -40 to 131 °F on PoE Class 5.
Key Features
- Wi-Fi 7 tri-band, 4x4 on 6 GHz
- Dynamic antennas
- 5G RJ-45, PoE Class 5
- Bluetooth 5.4 LE and Zigbee
- USB 2.0, console
- Hardened, -40 to 131 °F
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-763 (US) Flex
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: Opportunistic Wireless Encryption (OWE), WPA2, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 400, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 4
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 344 Mbps, Maximum data rate (5 GHz): 2.88 Gbps, Maximum data rate (6 GHz): 5.76 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS 10.8.0.0
Features: 2x2 MIMO technology, 4x4 MIMO 6GHz, Advanced Cellular Coexistence (ACC), Aruba AirMatch, Auto-uplink (auto MDI/MDI-X), Automatic thermal shutdown, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Energy-Efficient Ethernet (EEE), Fine Timing Measurement (FTM), Flexible Dual-2x2 or Single-4x4 Radio Modes, High Efficiency (HE) support, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Multi-Link Operation (MLO), Orthogonal Frequency Division Multiple Access (OFDMA), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Reset button, Security lock slot (cable lock sold separately), Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Wi-Fi Multimedia (WMM) support, Zero-wait DFS (ZWDFS)
Connectivity
Interface Provided: 1 x 100/1000/2500/5000Base-T - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 (host) - Type A
Power Over Ethernet (PoE): PoE Class 5
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95%
MTBF: 750,000 Hours
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Status, System
Built-in Devices: Barometric pressure sensor, GNSS receiver
Dimensions and Weight
Height: 3.7 inch
Width: 10.4 inch
Depth: 6.7 inch
Weight: 3.37 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, Wi-Fi CERTIFIED 7
Compliant Standards: EN 300.440, EN 301-489-1, EN 301-489-17, EN 303 413, EN 60601-1-1, EN60601-1-2, ETS 300 019 Class 2.3, ETS 300 019 Class 3.2, ETSI EN 300 328, ETSI EN 301 893, ETSI EN 303 687, FCC, IEC/EN 62368-1, IP50, ISED
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
