Product Information

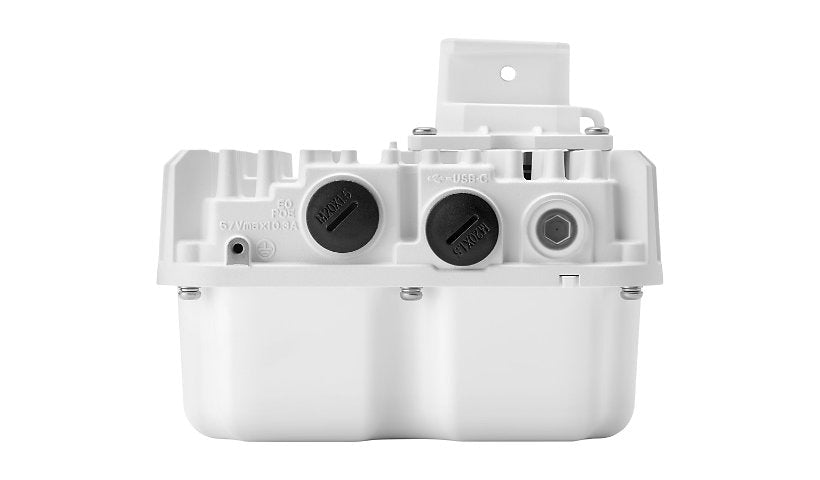

The HPE Aruba AP-765 (S4K19A) is a 760 series hardened Wi-Fi 7 access point for industrial sites, warehouses and large venues, with built in dynamic antennas that switch between directional and omni patterns. It has 4x4 MIMO on 6 GHz, a 5G port, USB-A and USB-C, Bluetooth 5.4 LE and Zigbee, rated -40 to 131 °F.
Key Features
- Wi-Fi 7 tri-band, 4x4 on 6 GHz
- Dynamic directional/omni antennas
- 5G RJ-45, PoE Class 5
- Bluetooth 5.4 LE and Zigbee
- USB-A and USB-C
- Hardened, -40 to 131 °F
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-765 (US) Flex
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA2, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 400, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 4
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 2.9 Gbps, Maximum data rate (6 GHz): 5.8 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Directional/omni-directional
Operating System Required: ArubaOS 10.9
Features: 2x2 MIMO technology, 4x4 MIMO 6GHz, Advanced Cellular Coexistence (ACC), Automatic thermal shutdown, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Energy-Efficient Ethernet (EEE), Fine Timing Measurement (FTM), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Multi-Link Operation (MLO), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Space Time Blocking Code (STBC), SU-MIMO technology, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Zero-wait DFS (ZWDFS)
Connectivity
Interface Provided: 1 x 100/1000/2500/5000Base‑T - RJ-45, 1 x USB 2.0 (host) - Type A, 1 x USB 3.0 (host) - Type C
Power Over Ethernet (PoE): PoE Class 5
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 100% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Status Indicators: Status, System
Built-in Devices: GNSS receiver, GPS receiver
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 7
Compliant Standards: ASTM B117-07A, ATEX Zone 2, Class 1 Division 2, EN 60601-1-1, EN60601-1-2, FCC, IEC/EN 62368-1, IECEx, IP66, IP67, ISED, RED 2014/53/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
