Product Information

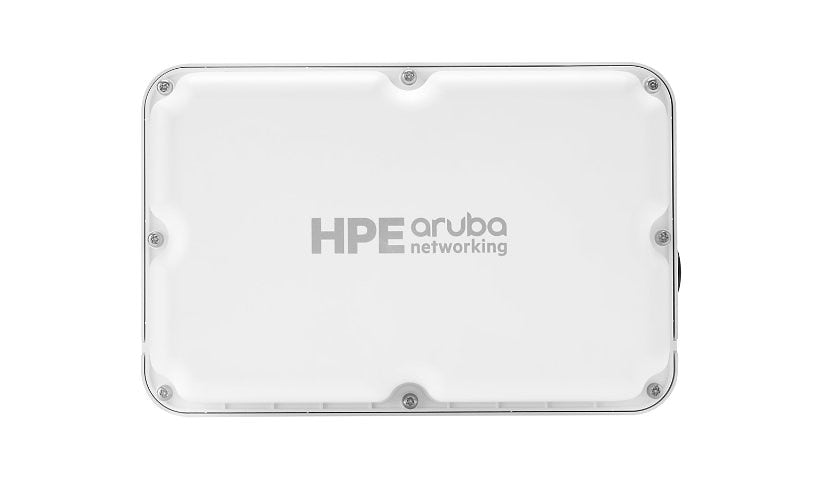

The HPE Aruba AP-765EX (S4K29A, US model) is the hazardous location edition of the 760 series hardened Wi-Fi 7 access point, with dynamic antennas. It offers 4x4 MIMO on 5 and 6 GHz, a 5G port, USB-C, a micro-USB console, Bluetooth 5.4 LE and Zigbee, and runs from -40 to 131 °F on PoE Class 5.
Key Features
- Hazardous location edition
- Wi-Fi 7, dynamic antennas
- 4x4 on 5 and 6 GHz
- 5G RJ-45, PoE Class 5
- BLE 5.4, Zigbee, USB-C
- -40 to 131 °F
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-765EX (US) Flex
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Encryption: WPA2, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, CCK, DSSS, OFDM, QPSK
Capacity: Associated client devices per radio: 400, BSSIDs per radio: 16, OFDMA units: 37, Spatial streams: 4
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 2.88 Gbps, Maximum data rate (6 GHz): 5.76 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: ArubaOS 10.8.0.0
Features: 2x2 MIMO technology, 4x4 MIMO 5GHz, 4x4 MIMO 6GHz, Advanced Cellular Coexistence (ACC), Automatic thermal shutdown, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), Energy-Efficient Ethernet (EEE), Fine Timing Measurement (FTM), Flexible Dual-2x2 or Single-4x4 Radio Modes, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Multi-Link Operation (MLO), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Space Time Blocking Code (STBC), SU-MIMO technology, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Zero-wait DFS (ZWDFS)
Edition: Hazardous Location
Connectivity
Interface Provided: 1 x 100/1000/2500/5000Base-T - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 (host) - Type C
Power Over Ethernet (PoE): PoE Class 5
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 100% (non-condensing)
MTBF: 750,000 Hours
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Status Indicators: Status, System
Built-in Devices: Barometric pressure sensor, GNSS receiver, GPS receiver
Dimensions and Weight
Height: 3.9 inch
Width: 10.5 inch
Depth: 6.9 inch
Weight: 4.5 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 7
Compliant Standards: ATEX Zone 2, Class 1 Division 2, Class 2 Division 2, EN 300.440, EN 301-489-1, EN 301-489-17, EN 303 413, EN 60601-1-1, EN 60601-1-2, ETSI EN 300 328, ETSI EN 301 893, ETSI EN 303 687, FCC, IEC/EN 62368-1, IECEx, IP66, IP67, ISED
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
