Product Information

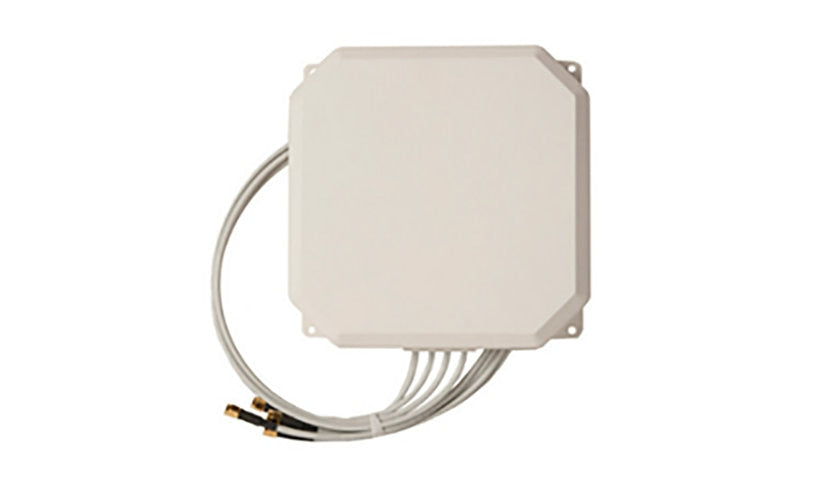

The HPE Aruba AP-ANT-345 (S1F83A) is a cabled, dual polarized four element directional panel antenna for 2.4, 5 and 6 GHz Wi-Fi at the same time, with 5 dBi peak gain and 90 x 90 degree beams. It suits indoor and outdoor sector coverage, uses RP-SMA connectors and mounts on a wall or ceiling with the supplied screws and anchors.
Key Features
- 4x4 directional panel antenna
- Tri band 2.4/5/6 GHz
- 5 dBi, 90 x 90 degree beam
- Dual polarized
- RP-SMA, cabled
- Screws and anchors included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking
Model: AP-ANT-345
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Network and Communication
Directivity: Directional
Connectivity
Connector Provided: RP-SMA
Technical Information
Antenna Form Type: Panel
Dimensions and Weight
Height: 8.5 inch
Width: 1.6 inch
Depth: 6.6 inch
Weight: 19.2 ounce
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
