Product Information

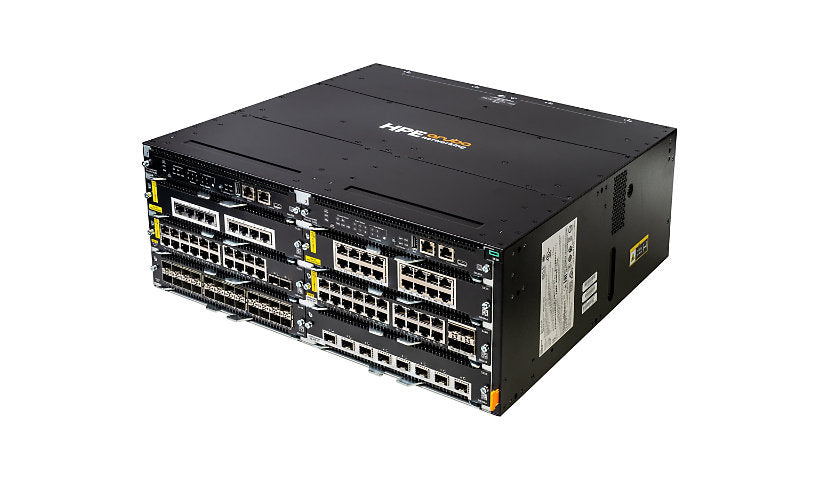

The HPE Aruba Networking CX 5420 S0U59A is a 6-slot Layer 3 modular chassis for campus and branch networks, with 960 Gbps of switching capacity. It includes a management module, fan tray, rack kit and cable management, and supports optional redundant power. Line cards are ordered separately.
Key Features
- 6-slot modular Layer 3 chassis
- 960 Gbps switching capacity
- Management module and fan tray included
- Optional N+1 or N+N redundant power
- Front to back airflow
- Rack kit and cable management included
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 5420
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Silver
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Remote Management: CLI, NTP, RMON, SFTP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol: ECMP, IGMP, IGMPv3, MLDv2, MSTP, OSPF, RSTP, Static IP routing, Static IPv6 routing, STP, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Performance: Switching capacity: 960 Gbps, Throughput: 714 Mpps
Capacity: IGMP groups: 2048, IPv4 ACL entries (egress): 5113, IPv4 ACL entries (ingress): 10233, IPv4 host table capacity: 25600, IPv4 routes (Unicast): 16384, IPv6 ACL entries (egress): 1278, IPv6 ACL entries (ingress): 2558, IPv6 host table capacity: 25600, IPv6 routes (Unicast): 8192, MAC ACL entries (egress): 5113, MAC ACL entries (ingress): 10233, MLD groups: 2048
Jumbo Frame Support: 9198 bytes
Features: Bridge protocol data unit (BPDU), Egress Queue Shaping (EQS), Layer 2 switching, Layer 3 routing, Link Aggregation Control Protocol (LACP), Multiple VLAN Registration Protocol (MVRP), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), REST API interface, sFlow, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Route Redundancy Protocol (VRRP) support
Connectivity
Interface Provided: 1 x management RJ-45 out-of-band network management
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Power Supplies Supported: 4
Redundant Power Supply Supported: N+1 (with optional power supply), N+N (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: AMD
Processor Type: Ryzen Embedded
Processor Number: V1500B
Processors Installed: 1
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 4
Airflow Direction: Front to back airflow
Installed Devices/Modules: 1
Dimensions and Weight
Height: 6.9 inch
Width: 17.4 inch
Depth: 17.6 inch
Weight: 34.68 lbs
Included Items
Included Accessories: 2-post 6-slot Rack Kit, 6-slot Accessory Kit, Cable management kit, Fan tray, Management module
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3z
Compliant Standards: CAN/CSA C22.2 No. 62368-1-19, CISPR 32:2015+AMD1:2019 Class A, CISPR 35: 2016, CNS 15598-1:2020, Directive 2014/35/EU, EN 55032:2015+A11:2020 Class A, EN 55035:2017+A11:2020, EN 60825-1:2014 + A11:2021, EN 62368-1:2014+A11:2017 2nd Ed., EN IEC 61000-3-2, EN IEC 62368-1:2020+A11:2020 Third Edition, FCC Part 15 B Class A, IEC 60825-1:2014, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC/EN 61000-3-3, Laser Class 1, UL 62368-1 Third Edition, VCCI
ENERGY STAR Certified: No
