Product Information

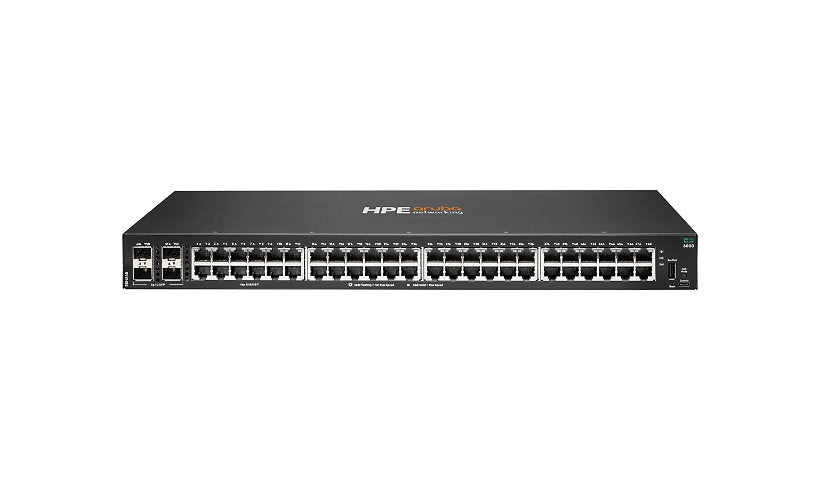

The HPE Aruba Networking CX 6000 (R8N86B) is a managed 48 port Gigabit access switch, not a network adapter. It has forty eight 10/100/1000 RJ-45 ports and four Gigabit SFP uplinks, running AOS-CX with Layer 2 switching and Layer 3 routing. It offers 104 Gbps switching capacity, 77.3 Mpps throughput, 1.9 µs latency and a 12.38 MB packet buffer, with TPM, RADIUS and TACACS+ security. It is 1U, rack or wall mountable, with side to side airflow.
Key Features
- Switch, not a network adapter
- 48 x 1GbE + 4 x SFP uplinks
- 104 Gbps switching capacity
- AOS-CX, Layer 2 and 3
- TPM and TACACS+ security
- 1U, rack or wall mount
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6000 48p 10M/100M/1G 4p SFP 1G
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Silver
Country: United States
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, MIB, RMON, SNMP, SNMP 2, SNMP 3
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: SSL
Performance: Latency (1 Gbps): 1.9 µs, Switching capacity: 104 Gbps, Throughput: 77.3 Mpps
Capacity: IGMP groups: 512, IPv4 ACL entries (ingress): 1914, IPv4 host table (ARP): 1024, IPv4 routes (Unicast): 512, IPv6 ACL entries (ingress): 957, IPv6 host table (ND): 512, IPv6 routes (Unicast): 512, MAC ACL entries (ingress): 1914, MLD groups: 512, Packet buffer size: 12.38 MB, Switched virtual interfaces (SVIs) (dual stack): 16
MAC Address Table Size: 8192 entries
Jumbo Frame Support: 9198 bytes
Operating System Required: AOS-CX
Features: Address Resolution Protocol, Class of Service (CoS), Layer 2 switching, Layer 3 routing, Link Layer Discovery Protocol, Multiple Spanning Tree Protocol (MSTP) support, Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP (uplink)
Interface Provided: 1 x USB Type A host, 1 x USB-C console, 4 x Gigabit LAN SFP uplink, 48 x 10/100/1000 Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Frequency: 50/60 hertz
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A9
Processors Installed: 1
Clock Speed: 1.016 GHZ
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable, Wall-mountable
Height (Rack Units): 1
Airflow Direction: Side to side airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 9.7 inch
Weight: 6.57 lbs
Certifications and Listing
Compliant Standards #2: AS/NZS CISPR 32:2015 Class A, CISPR 35:2017, CISPR-32 Class A, CNS 15598:2020, CNS 15936 Class A, CSA C22.2 No. 62368-1:19 Third Edition, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020, EN 61000-3-2, EN 61000-3-3, FCC CFR 47 Part 15 Class A, ICES-003 Issue 7: 2020 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC/EN 60825-1:2014 Class 1, IEC/EN 62368-1:2014, IEC/EN 62368-1:2018, KC 62386-1:2021, Laser Class 1, UL 62368-1:2019 Ed.3, VCCI-CISPR 32 Class A
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x
Compliant Standards: AS/NZS CISPR 32:2015 Class A, CISPR 35:2017, CISPR-32 Class A, CNS 15598:2020, CNS 15936 Class A, CSA C22.2 No. 62368-1:19 Third Edition, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020, EN 61000-3-2, EN 61000-3-3, FCC CFR 47 Part 15 Class A, ICES-003 Issue 7: 2020 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC/EN 60825-1:2014 Class 1, IEC/EN 62368-1:2014, IEC/EN 62368-1:2018, KC 62386-1:2021, Laser Class 1, UL 62368-1:2019 Ed.3, VCCI-CISPR 32 Class A
Warranty
Service Activation: No
