Product Information

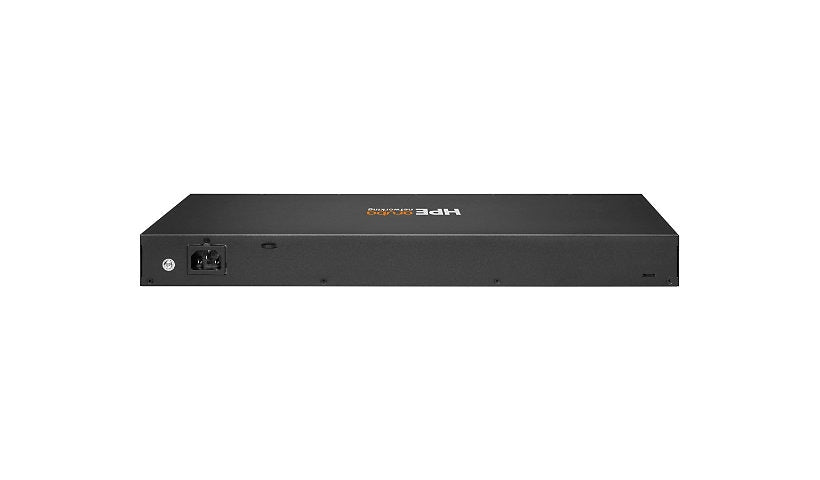

The HPE Aruba Networking CX 6100 (JL675A) is an entry-level managed access switch with 48 Gigabit PoE+ ports and four 1/10G SFP+ uplinks. It shares a 370 W PoE budget and offers 176 Gbps of switching capacity. It suits branch offices, mid-market companies and SMB networks.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 1/10G SFP+ uplinks
- 370 W PoE budget
- 176 Gbps switching capacity
- 4 GB RAM, 16 GB flash
- Rack mount, side-to-side airflow
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6100 48G Class4 PoE 4SFP+ 370W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Localization: English
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Routing Protocol: IGMPv2, IGMPv3
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: SSL
Performance: Latency (1 Gbps): 1.9 µs, Latency (10 Gbps): 1.8 µs, Switching capacity: 176 Gbps, Throughput: 98.6 µs
Capacity: ARP entries: 1024, IGMP groups: 512, IPv4 ACL entries (ingress): 256, IPv4 routes (Unicast): 512, IPv6 ACL entries (ingress): 128, IPv6 routes (Unicast): 512, MAC ACL entries (ingress): 256, MLD groups: 512, Switched virtual interfaces (SVIs): 16
MAC Address Table Size: 8192 entries
Features: ARP support, BOOTP support, DHCP client, DiffServ support, DNS client, Energy Efficient Ethernet, EntityMIB, Flow control, Internet Control Message Protocol (ICMP), IPv6 addressing, IPv6 support, LACP support, LLDP support, LLDP-MED, Management Information Base (MIB), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), Port based access control, Rapid Reconfiguration of Spanning Tree (RSTP), sFlow, SNMP support, SNTP support, Trivial File Transfer Protocol (TFTP) support, User Datagram Protocol (UDP), VLAN support
Connectivity
Ports: 52
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 1 x USB Type A, 1 x USB-C console, 4 x 1/10Gbit LAN SFP+, 48 x 10/100/1000 Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 30.6 watt
Power Provided: 500 watt
PoE Budget: 370 watt
Output Current: 2.4 ampere
Memory and Processor
Processor Brand: ARM
Processor Type: A9
Processors Installed: 1
Clock Speed: 1.016 GHZ
RAM Installed: 4 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Humidity Range Storage: 15 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Side to side airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12 inch
Weight: 11.07 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Compliant Standards: CAN/CSA C22.2 No. 60950 Second Edition, CISPR 24, EN 55022/CISPR 22 Class A, EN 60825, EN 60825-1:2007, EN 61000-3-2, EN 61000-3-3, FCC Class A certified, IEC 60825-1:2007 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC/EN 60950-1, Laser Class 1, RFC1213, RFC1493, RFC1591, RFC2460, RFC2674, RFC2925, RFC768, RFC783, RFC792, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
