Product Information

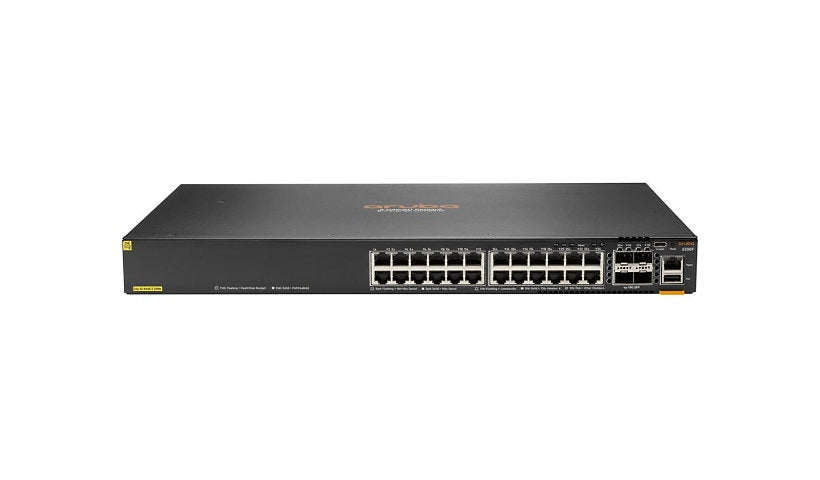

The HPE Aruba Networking CX 6200F (S0M87A) is a managed, stackable 24 port Layer 3 access switch, not a network adapter. It has twenty four 10/100/1000 PoE+ RJ-45 ports (Class 4, 30 W) with a 370 W PoE budget and four 100/1000 SFP uplinks, and stacks up to 8 units at distances up to 10 km. It runs AOS-CX with OSPF, VRRP and RIP, TPM and FIPS 140-2 security, 130.9 Mpps throughput and front and side to back airflow. It is 1U, includes a 2-post rack kit and is TAA compliant.
Key Features
- Switch, not a network adapter
- 24 x 1GbE PoE+ ports
- 370 W PoE budget
- 4 x SFP uplinks
- Stack up to 8 units
- 1U, TAA compliant
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6200F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Country: United States
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, MIB, RMON
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, RIP-2
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: FIPS 140-2, SSL
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Throughput: 130.9 Mpps
Stackable: Stackable
Operating System Required: AOS-CX
Features: Address Resolution Protocol, Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), Egress Queue Shaping (EQS), Link Layer Discovery Protocol, PoE Class 4, Rapid PVST+ (RPVST+), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support
Max Units In A Stack: 8
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 100/1000 SFP
Interface Provided: 24 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 - 30 W, 4 x 100/1000 SFP uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Frequency: 50/60 hertz
PoE Budget: 370 watt
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A72
Processors Installed: 1
Clock Speed: 1.8 GHZ
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.9 inch
Weight: 11.24 lbs
Included Items
Included Accessories: 2-Post Rack Kit
Certifications and Listing
Compliant Standards #2: AS/NZS CISPR 32:2015 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, CISPR 32:2016 Class A, CISPR 35: 2016, CNS 15598-1:2020, CNS 15936: 2020 Class A, EN 55032:2015 /A11:2020, Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, EN 63000:2018, FCC 47 CFR part 15B:2021 Class A, GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC 63000:2018, KC 62368-1: 2021-08, KS C 9832, Laser Class 1, UL 62368-1 Third Edition, VCCI-CISPR 32 Class A
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Compliant Standards: AS/NZS CISPR 32:2015 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, CISPR 32:2016 Class A, CISPR 35: 2016, CNS 15598-1:2020, CNS 15936: 2020 Class A, EN 55032:2015 /A11:2020, Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, EN 63000:2018, FCC 47 CFR part 15B:2021 Class A, GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC 63000:2018, KC 62368-1: 2021-08, KS C 9832, Laser Class 1, UL 62368-1 Third Edition, VCCI-CISPR 32 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
