Product Information

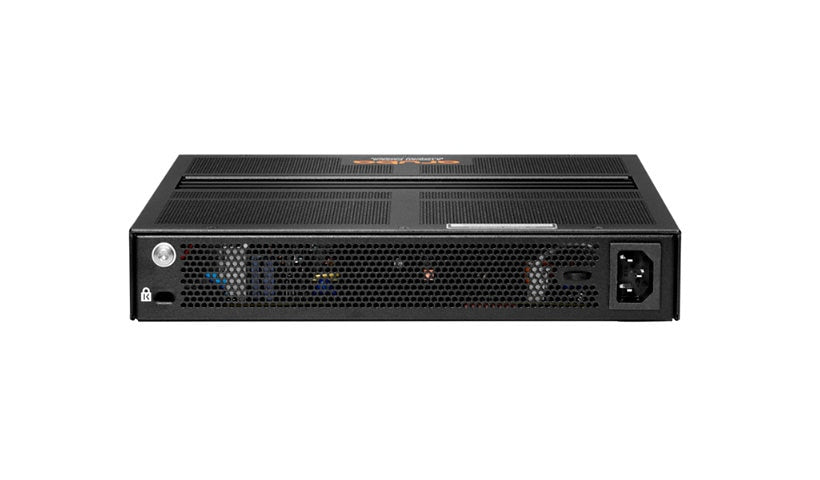

The HPE Aruba CX 6200F (R8Q72A) is a compact stackable access switch with 12 Gigabit PoE+ ports, two Gigabit uplinks and two 1/10G SFP+ ports. It shares a 139 W PoE budget, stacks up to eight units and supports Layer 3. A 2-post rack kit is included.
Key Features
- 12 x 10/100/1000 RJ-45 PoE+ ports (Class 4)
- 2 x Gigabit and 2 x 1/10G SFP+ ports
- 139 W PoE budget
- Layer 3, stacks up to 8 units
- 8 GB RAM, 16 GB flash
- 2-post rack kit included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP, SNMP 2c, SNMP 3
Routing Protocol: ECMP, OSPF, OSPFv2, OSPFv3, RIP-2
Authentication Method: RADIUS, TACACS+
Encryption: FIPS 140-2, MD5, SSL
Performance: Latency (1 Gbps): 3.8 µs, Latency (10 Gbps): 2.9 µs, Packet buffer size: 12.38 MB, Stacking bandwidth: 20 Gbps, Switching capacity: 68 Gbps, Throughput: 50.5 Mpps
Capacity: IGMP groups: 1000, IPv4 ACL entries (egress): 512, IPv4 ACL entries (ingress): 1000, IPv4 host table capacity: 8000, IPv4 routes (Unicast): 2000, IPv6 ACL entries (egress): 256, IPv6 ACL entries (ingress): 1000, IPv6 host table capacity: 8000, IPv6 routes (Unicast): 2000, MAC ACL entries (egress): 512, MAC ACL entries (ingress): 1000, MLD groups: 1000, Switched virtual interfaces (SVIs): 128
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Operating System Required: AOS-CX
Features: ARP support, Automatic Media-Dependent Interface Crossover (MDIX), Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DiffServ support, DNS support, Egress Queue Shaping (EQS), Equal-Cost Multipath (ECMP), Fanless, IGMP support, Layer 2 switching, Management Information Base (MIB), Network Timing Protocol (NTP), Quality of Service (QoS), Rapid PVST+ (RPVST+), Security slot (Kensington security lock compatible), Source-Specific Multicast (SSM), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unidirectional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support, Web GUI management portal
Max Units In A Stack: 8
Connectivity
Ports: 12
Port Quantity: 12
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 100/1000 (uplink)
Ports (3rd) Quantity: 2
Interface Provided: 1 x console (USB) Type C, 1 x console RJ-45, 1 x USB Type A host, 12 x 10/100/1000 Base-T RJ-45 PoE Class 4, 2 x 1/10Gbit LAN SFP+, 2 x 1000Base-T
Power Over Ethernet (PoE): PoE+
QSFP Slots: 1 Gigabit / 10 Gigabit SFP+
Power
Device Type: Internal power supply
PoE Budget: 139 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.2 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 10 inch
Depth: 12 inch
Weight: 7.14 lbs
Included Items
Included Accessories: Rack kit (2 post)
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3at
