Product Information

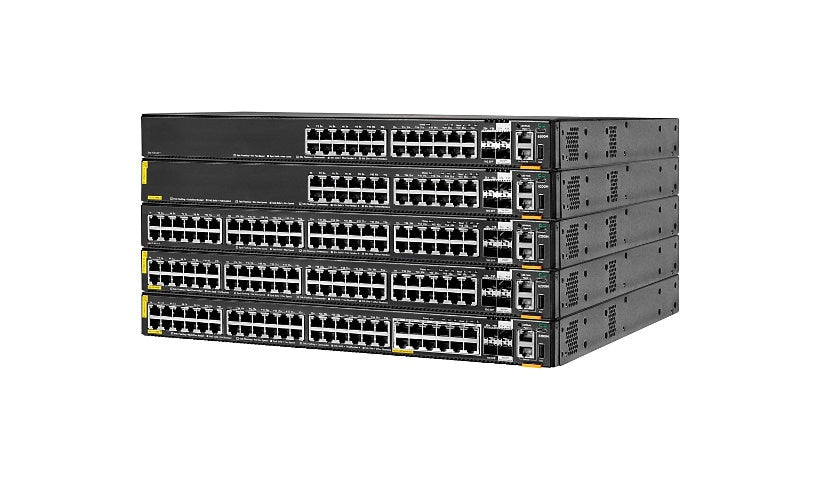

The HPE Aruba Networking CX 6200M (R8Q68A) is a stackable access switch with 24 Gigabit PoE+ ports and four 1/10G SFP+ ports for uplinks or stacking. It provides a 740 W PoE budget and supports VSF stacking, with an optional second power supply for 1+1 redundancy. A 2-post rack kit is included.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports (Class 4)
- 4 x 1/10G SFP+ ports (uplink or stacking)
- 740 W PoE budget
- Layer 3, VSF stacking
- Hot-plug power, optional second supply
- 8 GB RAM, 16 GB flash
- 2-post rack kit included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba
Model: 6200M 24G Class4 PoE 4SFP+
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol: ECMP, IGMP, IGMPv2, IGMPv3, MLD, MSTP, OSPF, PIM-DM, PIM-SM, RSTP, STP, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Stacking bandwidth: 40 Gbps, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps
Capacity: IGMP groups: 1000, IPv4 ACL entries (egress): 512, IPv4 ACL entries (ingress): 1000, IPv4 host table capacity: 8000, IPv4 routes (Unicast): 2000, IPv6 ACL entries (egress): 256, IPv6 ACL entries (ingress): 1000, IPv6 host table capacity: 8000, IPv6 routes (Unicast): 2000, MAC ACL entries (egress): 512, MAC ACL entries (ingress): 1000, MLD groups: 1000, Packet buffer size: 8 MB, Switched virtual interfaces (SVIs): 128
Jumbo Frame Support: 9220 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP support, Dynamic IPv6 lockdown, IPv6 support, LLDP support, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree Plus (PVST+), Protocol Independent Multicast (PIM), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, Syslog support, Type of Service (ToS), Virtual Extensible LAN (VXLAN), VLAN support
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Interface Provided: 1 x console RJ-45, 1 x USB Type A host, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45 PoE Class 4, 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-120/200-240 volt
Frequency: 50/60 hertz
PoE Budget: 740 watt
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1 (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Weight: 12.85 lbs
Included Items
Included Accessories: Rack kit (2 post)
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
Compliant Standards: BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35, CISPR 35 Ed 1.0:2016, CNS 15598-1:2020, CSA C22.2 No. 62368-1 Third Edition, EN 55032:2015+A11:2020 Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013/A1:2019, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., FCC CFR47 Part 15 B Class A 2014, ICES-003 Class A, IEC 60825-1:2014 Class 1, IEC 60950-1:2005 + Am1:2009 + Am2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1:2014 2nd Ed, IEC 62368-1:2018 Third Edition, UL 62368-1 Third Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
