Product Information

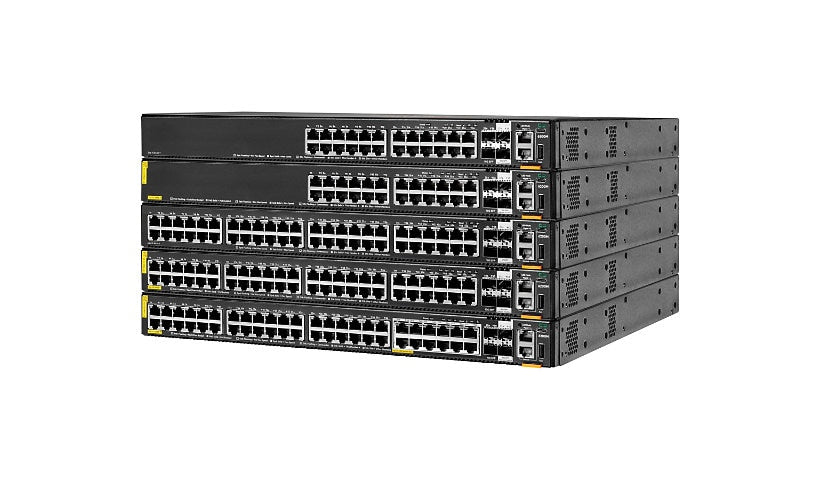

The HPE Aruba Networking CX 6200M (R8Q71A) is a stackable access switch with 36 Gigabit ports and 12 Smart Rate ports at 1/2.5/5G, all with Class 6 PoE, plus four 1/10G SFP+ ports for uplinks or stacking. It supports up to 1,440 W of PoE and stacks up to eight units. Modular power supplies are listed as not installed, so order them separately. A hot-swappable fan tray and 2-post rack kit are included.
Key Features
- 36 x 10/100/1000 RJ-45 PoE ports (Class 6)
- 12 x 1/2.5/5G RJ-45 PoE ports (Class 6)
- 4 x 1/10G SFP+ ports (uplink or stacking)
- Up to 1,440 W PoE
- Layer 3, stacks up to 8 units
- Power supplies not installed
- Fan tray and 2-post rack kit included
Product Information
Brand: Aruba
Manufacturer: Aruba
Product Line: HPE Aruba Networking CX
Model: 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP, SNMP 2c, SNMP 3
Routing Protocol: ECMP, OSPF, OSPFv2, OSPFv3, RIP-2
Authentication Method: RADIUS, TACACS+
Performance: Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Packet buffer size: 8 MB, Stacking bandwidth: 40 Gbps, Switching capacity: 272 Gbps, Throughput: 130.9 Mpps
Capacity: IGMP groups: 1000, IPv4 ACL entries (egress): 512, IPv4 ACL entries (ingress): 1000, IPv4 host table capacity: 8000, IPv4 routes (Unicast): 2000, IPv6 ACL entries (egress): 256, IPv6 ACL entries (ingress): 1000, IPv6 host table capacity: 8000, IPv6 routes (Unicast): 2000, MAC ACL entries (egress): 512, MAC ACL entries (ingress): 1000, MLD groups: 1000, Switched virtual interfaces (SVIs): 128
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9220 bytes
Stackable: Stackable
Features: ARP support, Automatic Media-Dependent Interface Crossover (MDIX), Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DiffServ support, DNS support, Egress Queue Shaping (EQS), Equal-Cost Multipath (ECMP), IGMP support, Layer 2 switching, Management Information Base (MIB), Network Timing Protocol (NTP), Quality of Service (QoS), Rapid PVST+ (RPVST+), Security slot (Kensington security lock compatible), Source-Specific Multicast (SSM), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unidirectional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support, Web GUI management portal
Max Units In A Stack: 8
Connectivity
Ports: 48
Port Quantity: 36
Port Type: 10/100/1000 (4PPoE)
Ports (2nd) Quantity: 12
Ports Type (2nd): 1/2.5/5GBase-T (4PPoE)
Ports (3rd) Quantity: 4
Interface Provided: 1 x console (USB) Type C, 1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A host, 12 x 1/2.5/5GBase-T (4PPoE) RJ-45 PoE Class 6, 36 x 10/100/1000 Base-T (4PPoE) RJ-45 PoE Class 6, 4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256
Power Over Ethernet (PoE): 4PPoE
QSFP Slots: 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Power
Device Type: Internal power supply (not installed)
PoE Budget: 1440 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.2 inch
Weight: 13.91 lbs
Included Items
Included Accessories: Fan tray (field replaceable, hotswappable), Rack kit (2 post)
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Compliant Standards: BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35, CISPR 35 Ed 1.0:2016, CNS 15598-1:2020, CSA 22.2 No.62368-1 Third Edition, EN 55032:2015+A11:2020 Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013/A1:2019, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., FCC 47 CFR part 15B:2014 Class A, ICES-003 Class A, IEC 60825-1:2014 Class 1, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1:2014 2nd Ed, IEC 62368-1:2018 Third Edition, Laser Class 1, RoHS, UL 62368-1 Third Edition, VCCI Class A, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
